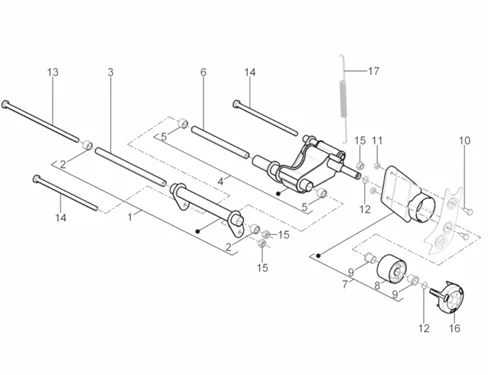

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_04.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/6/img/67046.jpg)
1 |
SWINGING ARM - ON FRAME SIDE "PIAGGIO GENUINE PART" 125-250-300-500 MP3, 125 LIBERTY, 125 TYPHOON -56411R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
2 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/7/img/72977.jpg)
3 |
SPACER- FOR SWINGING ARM (L228MM) "PIAGGIO GENUINE PART" 125-250-300 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, LIBERTY 2006>/GILERA 125-250-300 NEXUS 2007> -CM067803- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/7/4/img/69674.jpg)
4 |
SWINGING ARM "PIAGGIO GENUINE PART" APRILIA 50 SR MOTARD 2012>, SPORT-CITY ONE 2008> -853107- More informationQuantity required : 1 |
||||||
|
4 |
SWINGING ARM "PIAGGIO GENUINE PART" APRILIA 50 SR MOTARD 2012>, SPORT-CITY ONE 2008> -853107- More informationQuantity required : 1 |
||||||
|
5 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/5/img/72975.jpg)
6 |
SPACER- FOR SWINGING ARM (L183MM) "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -CM067801- More informationQuantity required : 1 |
||||||
7 |
664219 - SUPP. SOUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
8 |
SILENBLOC - ENGINE SUPPORT "PIAGGIO GENUINE PART" 125-250 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, X10 2012>, VESPA GTS 2007>/GILERA 125-250 NEXUS 2007>, RUNNER 2005>/APRILIA 125 SR-MAX 2011> -272750- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
9 |
BUSH FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 LEADER -273460- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
10 |
031116 - BOULON More informationQuantity required : 2 |
||||||
|
11 |
272176 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
12 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/2/img/67042.jpg)
13 |
SCREW - FOR SWING ARM "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, 50 TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD -563977- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/6/img/66106.jpg)
14 |
SCREW - FOR SUSPENSION ARM (10X202) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -271807- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
15 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/8/3/img/68283.jpg)
16 |
655151 - COUVERCLE More informationQuantity required : 1 |
||||||
|
17 |
856446 - RESSORT More informationQuantity required : 1 |
