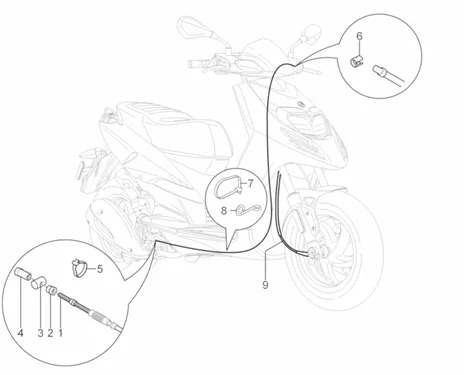

Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014 APRILIA

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
Transmissions
Search
REAR BRAKE CABLE KIT "PIAGGIO GENUINE PART" 50 TYPHOON 2012>/APRILIA 50 SR MOTARD 2012> -666930-

1
P2R reference P2R reference 68435
Maker reference Maker reference 666930

REAR BRAKE CABLE KIT "PIAGGIO GENUINE PART" 50 TYPHOON 2012>/APRILIA 50 SR MOTARD 2012> -666930-

More information

Quantity required : 1
598918 - REGLAGE FREIN

2
P2R reference P2R reference 67368
Maker reference Maker reference 598918

598918 - REGLAGE FREIN

More information

Quantity required : 1
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640-

3
P2R reference P2R reference 65794
Maker reference Maker reference 179640

REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640-

More information

Quantity required : 1
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310-

4
P2R reference P2R reference 66088
Maker reference Maker reference 270310

NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310-

More information

Quantity required : 1
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

5
P2R reference P2R reference 65742
Maker reference Maker reference 145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

More information

Quantity required : 1
BUSH FOR BRAKE CABLE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+ MAXISCOOTER -266040-

6
P2R reference P2R reference 66051
Maker reference Maker reference 266040

BUSH FOR BRAKE CABLE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+ MAXISCOOTER -266040-

More information

Quantity required : 1
257134 - COLLIER

7
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 2
666929 - PASSE-CABLE

8
P2R reference P2R reference 68434
Maker reference Maker reference 666929

666929 - PASSE-CABLE

More information

Quantity required : 1
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>, 50-125 SPORT-CITY ONE 2008> -858542-

9
P2R reference P2R reference 69782
Maker reference Maker reference 858542

TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>, 50-125 SPORT-CITY ONE 2008> -858542-

More information

Quantity required : 1
