Vehicle Exploded View - APRILIA SONIC 50 Air 1998-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

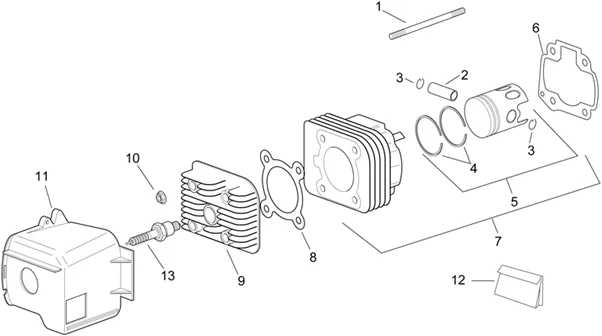

Moteur : 29.33 GROUPE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/274/Sonic_50_Air_1998-2007_29.33.PNG)
1 |
AP8206493 - PRISIONNIER CULASSE More informationQuantity required : 4 |
||||||
|
2 |
AP8206174 - AXE More informationQuantity required : 1 |
||||||
|
3 |
AP8206176 - BAGUE DE BUTEE AXE More informationQuantity required : 2 |
||||||
|
4 |
AP8206120 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
4 |
AP8206220 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
5 |
AP8206218 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
5 |
AP8206219 - PISTON CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/9/6/img/55896.jpg)
6 |
AP8206575 - JOINT BASE CYLINDRE More informationQuantity required : 1 |
||||||
|
7 |
AP8206502 - CYLINDRE AV.PISTON More informationQuantity required : 1 |
||||||
|
7 |
AP8176073 - CILINDRO CON PISTONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/6/5/img/55865.jpg)
8 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, SCARABEO 2 STROKE AIR -AP8206487- More informationQuantity required : 1 |
||||||
|
9 |
AP8176074 - TESTA More informationQuantity required : 1 |
||||||
|
9 |
AP8206460 - CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/6/7/img/55867.jpg)
10 |
AP8206491 - ECROU BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/4/8/img/55848.jpg)
11 |
AP8206465 - COIFFE CONVOYEUR CYLINDRE More informationQuantity required : 1 |
||||||
|
12 |
AP8206844 - JOINTS-JEU More informationQuantity required : 1 |
||||||
|
13 |
AP8176075 - BOUGIE NGK BPR4HS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/7/3/img/72173.jpg)
13 |
AP8206870 - BOUGIE NGK BR7HS More informationQuantity required : 1 |
