Vehicle Exploded View - APRILIA SONIC 50 Air 1998-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

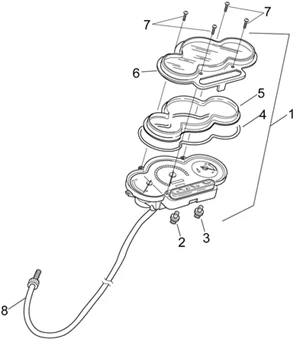

Chassis : 28.17 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/274/Sonic_50_Air_1998-2007_28.17.PNG)
1 |
AP8212984 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
1 |
AP8212992 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
1 |
AP8224105 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
2 |
AP8212407 - PORTE-AMPOULE COMPLET More informationQuantity required : 5 |
||||||
|
3 |
AP8212408 - PORTE-AMPOULE COMPLET More informationQuantity required : 2 |
||||||
|
4 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
|
5 |
AP8224052 - ECRAN D'ECLAIRAGE GRIS More informationQuantity required : 1 |
||||||
|
6 |
AP8224051 - VITRE TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/8/img/72308.jpg)
7 |
AP8221242 - VIS TARAUD SPECIALE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/6/3/img/56563.jpg)
8 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" APRILIA 50 SONIC -AP8214173- More informationQuantity required : 1 |
