Vehicle Exploded View - APRILIA SONIC 50 Air 1998-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

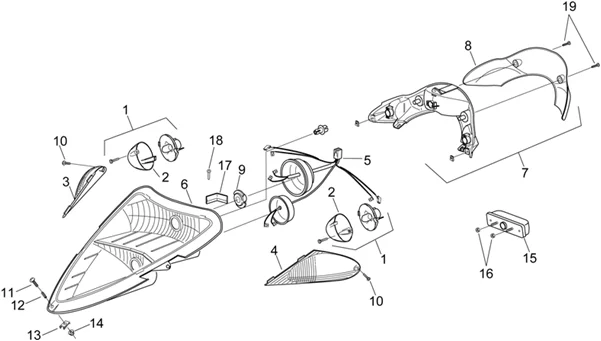

Chassis : 28.28 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/274/Sonic_50_Air_1998-2007_28.28.PNG)
1 |
AP8224045 - INDICATEUR DIRECTION; More informationQuantity required : 2 |
||||||
|
2 |
AP8224046 - VERRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/2/9/img/57229.jpg)
3 |
LENS FOR FLASHER-FRONT- RIGHT- "PIAGGIO GENUINE PART" APRILIA 50 SONIC -AP8224043- More informationQuantity required : 1 |
||||||
|
4 |
AP8224044 - GLACE CLIGN. G; More informationQuantity required : 1 |
||||||
|
5 |
AP8212993 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
|
5 |
AP8212889 - CABLAGE FEU AV; More informationQuantity required : 1 |
||||||
|
6 |
AP8212882 - PHARE AVANT; More informationQuantity required : 1 |
||||||
|
6 |
AP8212990 - PHARE AVANT; More informationQuantity required : 1 |
||||||
|
7 |
AP8124830 - FEU ARRIERE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/3/3/img/57233.jpg)
8 |
LENS FOR TAIL LAMP "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1999>2001, 50 SONIC 1998>2008 -AP8224047- More informationQuantity required : 1 |
||||||
|
9 |
AP8224042 - PORTE-AMPOULE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 2 |
||||||
|
11 |
AP8150427 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/3/img/46923.jpg)
12 |
AP8121710 - RES. HELIC. COMPR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
13 |
AP8102381 - CLIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
14 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
|
15 |
AP8212989 - FEU DE PLAQUE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
17 |
AP8224062 - PLAQUE More informationQuantity required : 2 |
||||||
|
18 |
AP8224063 - VIS TARAUD More informationQuantity required : 2 |
