Vehicle Exploded View - APRILIA SONIC 50 Air 1998-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

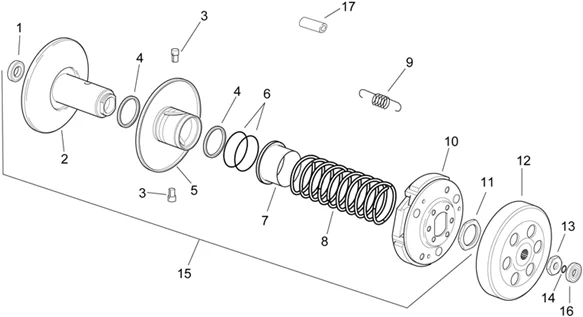

Moteur : 29.37 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/274/Sonic_50_Air_1998-2007_29.37.PNG)
1 |
AP8206214 - JOINT SPI More informationQuantity required : 1 |
||||||
|
2 |
AP8206735 - POULIE SEC.FIXE More informationQuantity required : 1 |
||||||
|
3 |
AP8206741 - ROULEAU GUIDE-VARIATEUR More informationQuantity required : 2 |
||||||
|
4 |
AP8206743 - JOINT SPI More informationQuantity required : 2 |
||||||
|
5 |
AP8206736 - POULIE SEC.MOBILE More informationQuantity required : 1 |
||||||
|
6 |
AP8206740 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
7 |
AP8206737 - RONDELLE RESSORT VARIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/7/1/img/55971.jpg)
8 |
VARIATOR THRUST SPRING "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULIVER, SONIC, SR -AP8206729- More informationQuantity required : 1 |
||||||
|
9 |
AP8206762 - RES.RAP.SABOTS EMB. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/7/9/img/55979.jpg)
9 |
AP8206739 - RES.RAP.SABOTS EMB. More informationQuantity required : 3 |
||||||
|
10 |
AP8206738 - EMBRAYAGE CENTRIFUGE COMPLET More informationQuantity required : 1 |
||||||
|
10 |
AP8206763 - EMBRAYAGE CENTRIFUGE COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/7/3/img/55973.jpg)
11 |
NUT - FOR CLUTCH "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, SR -AP8206732- More informationQuantity required : 1 |
||||||
|
12 |
AP8206733 - CLOCHE EMBRAYAGE COMPLETE More informationQuantity required : 1 |
||||||
|
13 |
AP8206829 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
AP8206744 - VARIATEUR AVEC EMBRAYAGE More informationQuantity required : 1 |
||||||
|
15 |
AP8206761 - VARIATEUR AVEC EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/0/2/9/img/56029.jpg)
16 |
EXTERNAL BEARING Ø 8X28X9 FOR DRIVEN PULLEY "PIAGGIO GENUINE PART" APRILIA 50 SONIC -AP8206836- More informationQuantity required : 2 |
