Vehicle Exploded View - APRILIA SONIC 50 Air 1998-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

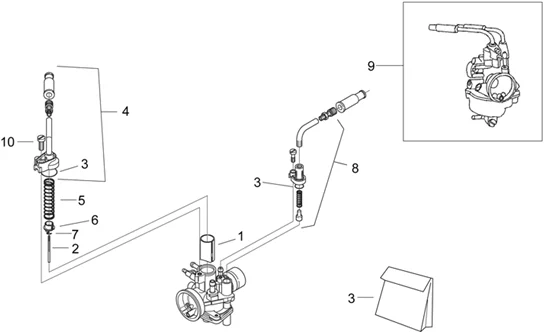

Moteur : 29.40 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/274/Sonic_50_Air_1998-2007_29.40.PNG)
1 |
AP8206898 - SOUPAPE GAZ More informationQuantity required : 1 |
||||||
|
1 |
AP8206899 - SOUPAPE GAZ More informationQuantity required : 1 |
||||||
|
2 |
AP8206900 - POINTEAU CONIQUE More informationQuantity required : 1 |
||||||
|
3 |
AP8206886 - SACHET JOINTS More informationQuantity required : 1 |
||||||
|
4 |
AP8206909 - KIT COUV. CHAMBRE MELANGE More informationQuantity required : 1 |
||||||
|
5 |
AP8206908 - RESS.RAPP.SOUP.GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
7 |
NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/0/5/6/img/56056.jpg)
8 |
MECHANICAL CHOKE "PIAGGIO GENUINE PART" APRILIA 50 SX, RX, RS, SR, RALLY -AP8206893- More informationQuantity required : 1 |
||||||
|
9 |
AP8206995 - CARBURATEUR PHBN 12-GS More informationQuantity required : 1 |
||||||
|
9 |
AP8206885 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
9 |
AP8206812 - CARBURATEUR PHBN 12-GS More informationQuantity required : 1 |
||||||
|
9 |
AP8206811 - CARBURATEUR PHBN 12-GS More informationQuantity required : 1 |
||||||
|
9 |
AP8206810 - CARBURATEUR PHBN 12-GS More informationQuantity required : 1 |
||||||
|
9 |
AP8206809 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
9 |
AP8176076 - CARBURATORE PHBN 12-GS More informationQuantity required : 1 |
||||||
|
9 |
AP8106917 - CARBURATEUR PHBN 12-GS More informationQuantity required : 1 |
||||||
|
9 |
AP8206817 - CARBURATEUR PHBN 12-GS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/2/img/66202.jpg)
10 |
288865 - VIS More informationQuantity required : 1 |
