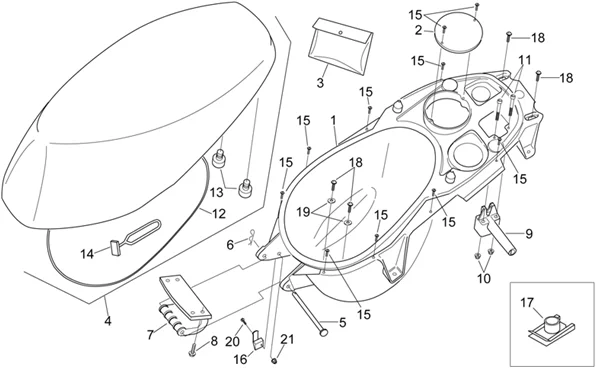

Vehicle Exploded View - APRILIA SONIC 50 Air 1998-2007 APRILIA

Chassis : 28.13 SELLE - COMPART.P-CASQUE
Selle - Compart.p-casque
Search
AP8239297 - COMPART.P-CASQUE;

1
P2R reference P2R reference 58332
Maker reference Maker reference AP8239297

AP8239297 - COMPART.P-CASQUE;

More information

Quantity required : 1

AP8239354 - ABATT. JAUGE ESSENCE

2
P2R reference P2R reference 58338
Maker reference Maker reference AP8239354

AP8239354 - ABATT. JAUGE ESSENCE

More information

Quantity required : 1

AP8202131 - TROUSSE A OUTILS

3
P2R reference P2R reference 55433
Maker reference Maker reference AP8202131

AP8202131 - TROUSSE A OUTILS

More information

Quantity required : 1

AP8229369 - SELLE NOIRE

4
P2R reference P2R reference 57888
Maker reference Maker reference AP8229369

AP8229369 - SELLE NOIRE

More information

Quantity required : 1

AP8229420 - SELLA BIC.ROSSO/NERO

4
P2R reference P2R reference 57924
Maker reference Maker reference AP8229420

AP8229420 - SELLA BIC.ROSSO/NERO

More information

Quantity required : 1

AP8229421 - SELLA BIC.NERO/NERO

4
P2R reference P2R reference 57925
Maker reference Maker reference AP8229421

AP8229421 - SELLA BIC.NERO/NERO

More information

Quantity required : 1

AP8229277 - SELLE GRISE;

4
P2R reference P2R reference 57853
Maker reference Maker reference AP8229277

AP8229277 - SELLE GRISE;

More information

Quantity required : 1

Selle violet;

4
P2R reference P2R reference
Maker reference Maker reference AP8229279

Selle violet;

AP8229285 - SELLE BLEU;

4
P2R reference P2R reference 57854
Maker reference Maker reference AP8229285

AP8229285 - SELLE BLEU;

More information

Quantity required : 1

Selle lilas;

4
P2R reference P2R reference
Maker reference Maker reference AP8229286

Selle lilas;

AP8229298 - SELLE NOIRE;

4
P2R reference P2R reference 57858
Maker reference Maker reference AP8229298

AP8229298 - SELLE NOIRE;

More information

Quantity required : 1

AP8229414 - SELLA NERA BICOLORE

4
P2R reference P2R reference 57920
Maker reference Maker reference AP8229414

AP8229414 - SELLA NERA BICOLORE

More information

Quantity required : 1

AP8221173 - PIVOT CHARNIERE SELLE

5
P2R reference P2R reference 57013
Maker reference Maker reference AP8221173

AP8221173 - PIVOT CHARNIERE SELLE

More information

Quantity required : 1

PIN FOR FUEL FILLER CAP "PIAGGIO GENUINE PART" PIAGGIO GILERA 50 SMT, RCR 2018> -AP8201673

6
P2R reference P2R reference 72138
Maker reference Maker reference AP8201643

PIN FOR FUEL FILLER CAP "PIAGGIO GENUINE PART" PIAGGIO GILERA 50 SMT, RCR 2018> -AP8201673

More information

Quantity required : 1

AP8239090 - ATTACHE STRUCT.SELLE;

7
P2R reference P2R reference 58288
Maker reference Maker reference AP8239090

AP8239090 - ATTACHE STRUCT.SELLE;

More information

Quantity required : 1

AP8152279 - VIS BRIDE

8
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

AP8152279 - VIS BRIDE

More information

Quantity required : 4

AP8202059 - SERRURE SELLE

9
P2R reference P2R reference 55421
Maker reference Maker reference AP8202059

AP8202059 - SERRURE SELLE

More information

Quantity required : 1

AP8152299 - ECROU AUTOBLOQU.

10
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

AP8152299 - ECROU AUTOBLOQU.

More information

Quantity required : 2

AP8150403 - VIS

11
P2R reference P2R reference 71875
Maker reference Maker reference AP8150403

AP8150403 - VIS

More information

Quantity required : 2

890508 - JOINT SELLE

12
P2R reference P2R reference 41725
Maker reference Maker reference 890508

890508 - JOINT SELLE

More information

Quantity required : 1

AP8220349 - CAOUTCHOUC APPUI SELLE

13
P2R reference P2R reference 72281
Maker reference Maker reference AP8220349

AP8220349 - CAOUTCHOUC APPUI SELLE

More information

Quantity required : 2

AP8144154 - ELASTIQUE DE FIXATION;

14
P2R reference P2R reference 49634
Maker reference Maker reference AP8144154

AP8144154 - ELASTIQUE DE FIXATION;

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

15
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

More information

Quantity required : 10

AP8234094 - SUPPORT P-FUSIBLES;

16
P2R reference P2R reference 58054
Maker reference Maker reference AP8234094

AP8234094 - SUPPORT P-FUSIBLES;

More information

Quantity required : 1

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

17
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

More information

Quantity required : 5

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

18
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

More information

Quantity required : 4

AP8150015 - RONDELLE

19
P2R reference P2R reference 71808
Maker reference Maker reference AP8150015

AP8150015 - RONDELLE

More information

Quantity required : 2

AP8152274 - VIS BRIDE

20
P2R reference P2R reference 71940
Maker reference Maker reference AP8152274

AP8152274 - VIS BRIDE

More information

Quantity required : 1

AP8152306 - ECROU AUTOBLOQU.

21
P2R reference P2R reference 71963
Maker reference Maker reference AP8152306

AP8152306 - ECROU AUTOBLOQU.

More information

Quantity required : 1
