Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

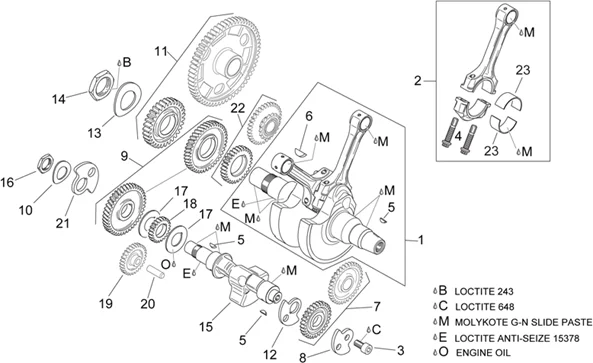

Moteur : 29.49 ARBRE MOTEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_29.49.PNG)
1 |
AP0295663 - ALBERO MOTORE CPL. More informationQuantity required : 1 |
||||||
|
2 |
AP0217346 - BIELLE CPL. More informationQuantity required : 2 |
||||||
|
3 |
AP0440260 - VIS More informationQuantity required : 1 |
||||||
|
4 |
AP0640400 - VIS BIELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/9/0/img/43790.jpg)
5 |
TRANSMISSION KEY 4X5 "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, RX, 1000 RSV-2, TUONO, CAPONORD -AP0246570- More informationQuantity required : 3 |
||||||
|
6 |
AP0946015 - CLAVETTE More informationQuantity required : 1 |
||||||
|
7 |
AP0295765 - ENGRENAGE DISTRIB.CPL. More informationQuantity required : 1 |
||||||
|
8 |
AP0219365 - CONTREP.CTTE VOL.EXT. More informationQuantity required : 1 |
||||||
|
9 |
AP0295770 - PIGNON CONTRE-ARBRE CPL. More informationQuantity required : 1 |
||||||
|
10 |
AP0245860 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
12 |
AP0219360 - CONTREP.CTTE VOL.INT. More informationQuantity required : 1 |
||||||
|
13 |
AP0245840 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
14 |
AP0242940 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
AP0220374 - CONTRALBERO INFERIORE More informationQuantity required : 1 |
||||||
|
16 |
AP0242874 - ECROU More informationQuantity required : 1 |
||||||
|
17 |
AP0627200 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
AP0634610 - ENGRENAGE POMPE EAU More informationQuantity required : 1 |
||||||
|
19 |
AP0634500 - PIGNON INTERMEDIAIRE More informationQuantity required : 1 |
||||||
|
20 |
AP0929930 - PIVOT More informationQuantity required : 1 |
||||||
|
21 |
AP0219350 - CONTREP.CTTE EMBR. More informationQuantity required : 1 |
||||||
|
22 |
AP0295760 - ENGRENAGE DISTRIB.CPL.; More informationQuantity required : 1 |
||||||
|
23 |
PLANE BEARING 42X45X19 RED FOR APRILIA 1000 CAPONORD, FUTURA, RSV-2, TUONO V2, FALCO - PIAGGIO GENUINE PART -AP0233721- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/5/5/img/43555.jpg)
23 |
BEARING SHELL -- BLUE (45X45X19) "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, FUTURA, FALCO, CAPONORD -AP0233722- More informationQuantity required : 2 |
||||||
|
23 |
AP0233723 - BRONZINA 42X45X19 GIALLA More informationQuantity required : 2 |
