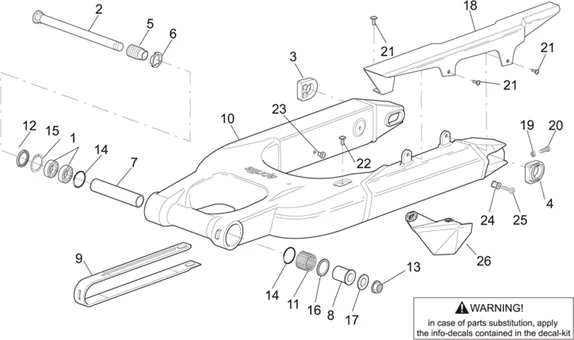

Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003 APRILIA

Chassis : 28.09 FOURCHE ARRIERE
Fourche arriere
Search
BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" APRILIA 1000 RSV, 750-900 SHIVER, FUTURA, CAPONORD -AP8110079-

1
P2R reference P2R reference 45830
Maker reference Maker reference AP8110079

BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" APRILIA 1000 RSV, 750-900 SHIVER, FUTURA, CAPONORD -AP8110079-

More information

Quantity required : 2
AP8125830 - PIVOT FOURCHE AR

2
P2R reference P2R reference 47774
Maker reference Maker reference AP8125830

AP8125830 - PIVOT FOURCHE AR

More information

Quantity required : 1
RIGHT CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO -AP8120985-

3
P2R reference P2R reference 46712
Maker reference Maker reference AP8120985

RIGHT CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO -AP8120985-

More information

Quantity required : 1
LEFT CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO -AP8120986-

4
P2R reference P2R reference 46713
Maker reference Maker reference AP8120986

LEFT CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO -AP8120986-

More information

Quantity required : 1
AP8121200 - DOUILLE DE REGLAGE

5
P2R reference P2R reference 46744
Maker reference Maker reference AP8121200

AP8121200 - DOUILLE DE REGLAGE

More information

Quantity required : 1
AP8121201 - BAGUE PIVOT FOURCHE

6
P2R reference P2R reference 46745
Maker reference Maker reference AP8121201

AP8121201 - BAGUE PIVOT FOURCHE

More information

Quantity required : 1
AP8121202 - ENTRETOISE INTERNE

7
P2R reference P2R reference 46746
Maker reference Maker reference AP8121202

AP8121202 - ENTRETOISE INTERNE

More information

Quantity required : 1
AP8121203 - DOU.INT.TIGE FOURCHE

8
P2R reference P2R reference 46747
Maker reference Maker reference AP8121203

AP8121203 - DOU.INT.TIGE FOURCHE

More information

Quantity required : 1
AP8110078 - CAGE A ROULEAUX

11
P2R reference P2R reference 45829
Maker reference Maker reference AP8110078

AP8110078 - CAGE A ROULEAUX

More information

Quantity required : 1
AP8144006 - BAGUE D'ETANCHEITE

12
P2R reference P2R reference 49574
Maker reference Maker reference AP8144006

AP8144006 - BAGUE D'ETANCHEITE

More information

Quantity required : 1
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763-

13
P2R reference P2R reference 47747
Maker reference Maker reference AP8125763

NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763-

More information

Quantity required : 1
AP8144048 - JOINT TORIQUE

14
P2R reference P2R reference 49589
Maker reference Maker reference AP8144048

AP8144048 - JOINT TORIQUE

More information

Quantity required : 2
AP8121204 - BAGUE SEEGER POUR ORIFICE

15
P2R reference P2R reference 46748
Maker reference Maker reference AP8121204

AP8121204 - BAGUE SEEGER POUR ORIFICE

More information

Quantity required : 1
GASKET RING FOR SWINGING ARM AXLE (LEFT) "PIAGGIO GENUINE PART" APRILIA CAPONORD 1200 2015>2017, DORSODURO 750-900-1200 2010>2017, RSV4 1000 2009>2018 -AP8144005-

16
P2R reference P2R reference 49573
Maker reference Maker reference AP8144005

GASKET RING FOR SWINGING ARM AXLE (LEFT) "PIAGGIO GENUINE PART" APRILIA CAPONORD 1200 2015>2017, DORSODURO 750-900-1200 2010>2017, RSV4 1000 2009>2018 -AP8144005-

More information

Quantity required : 1
AP8125687 - RONDELLE AXE ROUE AR;

17
P2R reference P2R reference 47735
Maker reference Maker reference AP8125687

AP8125687 - RONDELLE AXE ROUE AR;

More information

Quantity required : 1
2B004511 - ECROU

19
P2R reference P2R reference 145822
Maker reference Maker reference AP8150334

2B004511 - ECROU

More information

Quantity required : 2
2B004511 - ECROU

19
P2R reference P2R reference 145822
Maker reference Maker reference 2B004511

2B004511 - ECROU

More information

Quantity required : 2
AP8152305 - VIS REGLAGE T-CHA?NE

20
P2R reference P2R reference 71962
Maker reference Maker reference AP8152305

AP8152305 - VIS REGLAGE T-CHA?NE

More information

Quantity required : 2
SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

21
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

More information

Quantity required : 3
SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

22
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

More information

Quantity required : 2
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531-

23
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531-

More information

Quantity required : 1
SPACER- FOR CHAIN TENSIONER "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4 -AP8148824-

24
P2R reference P2R reference 50455
Maker reference Maker reference AP8148824

SPACER- FOR CHAIN TENSIONER "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4 -AP8148824-

More information

Quantity required : 1
AP8150468 - VIS FHC

25
P2R reference P2R reference 71892
Maker reference Maker reference AP8150468

AP8150468 - VIS FHC

More information

Quantity required : 1
AP8144321 - GALET GUIDE-CHA?NE

26
P2R reference P2R reference 49692
Maker reference Maker reference AP8144321

AP8144321 - GALET GUIDE-CHA?NE

More information

Quantity required : 1
