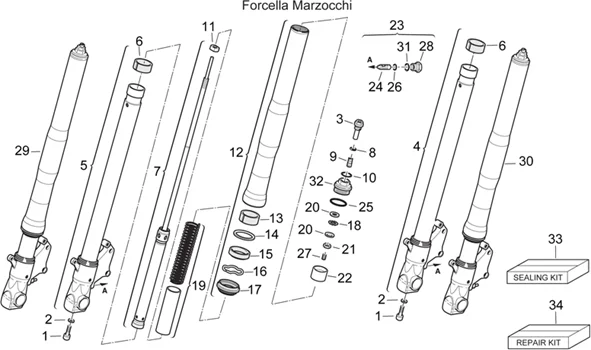

Chassis : 28.08 FOURCHE AV. III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.08.PNG)
4 |
AP8163176 - TIGE+PORTE-ROUE G More informationQuantity required : 1 |
||||||
|
6 |
AP8163128 - DOUILLE; More informationQuantity required : 2 |
||||||
|
7 |
AP8163178 - ELEM.POMPAGE CPL More informationQuantity required : 2 |
||||||
|
8 |
AP8163143 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
10 |
AP8163142 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
11 |
AP8163144 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
AP8163131 - DOUILLE More informationQuantity required : 2 |
||||||
|
14 |
GU01530590 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
AP8163133 - JOINT SPI More informationQuantity required : 2 |
||||||
|
16 |
AP8163134 - BAGUE SEEGER More informationQuantity required : 2 |
||||||
|
17 |
897990 - SEGMENT RACLEUR D'HUILE More informationQuantity required : 2 |
||||||
|
18 |
AP8125895 - ROULEMENT More informationQuantity required : 2 |
||||||
|
22 |
AP8163141 - RONDELLE More informationQuantity required : 2 |
||||||
|
25 |
AP8163138 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
27 |
AP8150497 - GOUJON More informationQuantity required : 2 |
||||||
|
29 |
AP8163251 - TIGE DROITE CPL., GOLD More informationQuantity required : 1 |
||||||
|
29 |
AP8163181 - TIGE DROITE CPL., NOIRE More informationQuantity required : 1 |
||||||
|
30 |
AP8163182 - TIGE GAUCHE CPL., NOIRE More informationQuantity required : 1 |
||||||
|
30 |
AP8163252 - TIGE GAUCHE CPL., GOLD More informationQuantity required : 1 |
||||||
|
32 |
AP8163137 - BOUCHON FOURREAU CPL. More informationQuantity required : 2 |
||||||
|
33 |
AP8163172 - KIT REVISION FOURCHE AV. More informationQuantity required : 1 |
||||||
|
34 |
AP8163173 - KIT REPARATION More informationQuantity required : 1 |
