Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

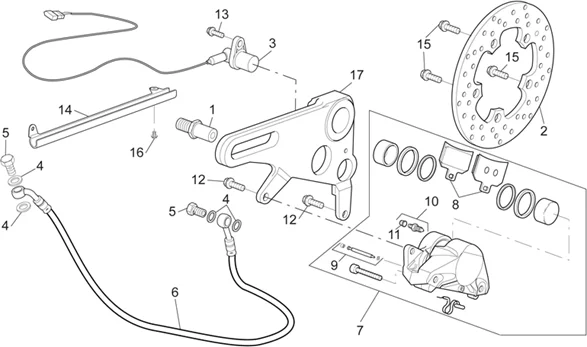

Chassis : 28.38 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.38.PNG)
1 |
898486 - PIVOT More informationQuantity required : 1 |
|||||||||
|
2 |
AP8113612 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/7/img/71567.jpg)
3 |
SENSOR FOR SPEEDOMETER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 500 SCARABEO, 500 ATLANTIC, 250 RS, 1000 RSV-2, RSV-4, TUONO, FALCO -AP8124528- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
|||||||||
|
7 |
AP8133900 - PINZA FRENO POSTERIORE P32 More informationQuantity required : 1 |
|||||||||
|
8 |
AP8133920 - PASTIGLIE FRENO 2172 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/1/img/71321.JPG)
9 |
AP8113752 - AXE +GOUPILLE PINCE; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8113895 - PURGE AIR More informationQuantity required : 1 |
|||||||||
|
11 |
AP8113070 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
12 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
|||||||||
|
15 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
16 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
|||||||||
