Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

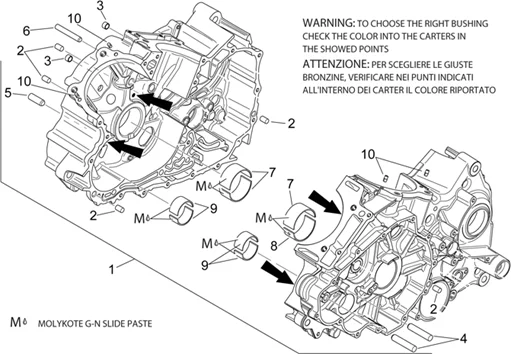

Moteur : 29.46 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_29.46.PNG)
1 |
AP0296961 - CARTER MOTORE CPL More informationQuantity required : 1 |
||||||
|
2 |
AP0632010 - GOUPILLE More informationQuantity required : 5 |
||||||
|
3 |
AP0929500 - GOUPILLE More informationQuantity required : 2 |
||||||
|
4 |
AP0229302 - PIVOT More informationQuantity required : 2 |
||||||
|
4 |
AP0229302 - PIVOT More informationQuantity required : 2 |
||||||
|
5 |
AP0929930 - PIVOT More informationQuantity required : 1 |
||||||
|
6 |
AP0229385 - PIVOT More informationQuantity required : 1 |
||||||
|
7 |
AP0233748 - DEMI-COQ.CS.BR.JAUNE More informationQuantity required : 3 |
||||||
|
7 |
AP0233746 - DEMI-COQ.CS.BR.ROUGE More informationQuantity required : 3 |
||||||
|
7 |
AP0233745 - DEMI-COQ.CSS.BR.BLEU More informationQuantity required : 3 |
||||||
|
8 |
AP0233740 - DEMI-COQ.CSS.BR.BLEU More informationQuantity required : 1 |
||||||
|
8 |
AP0233743 - DEMI-COQ.CS.BR.JAUNE More informationQuantity required : 1 |
||||||
|
8 |
AP0233741 - DEMI-COQ.CS.BR.ROUGE More informationQuantity required : 1 |
||||||
|
9 |
AP0233711 - DEMI-COQ.CSS.BR.BLEU More informationQuantity required : 4 |
||||||
|
9 |
AP0233820 - DEMI-COQ.CS.BR.ROUGE More informationQuantity required : 4 |
||||||
|
9 |
AP0233822 - DEMI-COQ.CS.BR.JAUNE More informationQuantity required : 4 |
||||||
|
10 |
AP0929650 - GOUPILLE More informationQuantity required : 4 |
