Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

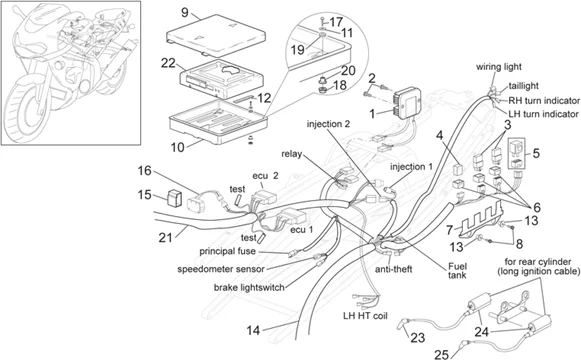

Chassis : 28.43 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.43.PNG)
1 |
VOLTAGE REGULATOR-"PIAGGIO GENUINE PART" APRILIA 1000 TUONO V2 2002>2005, 1000 RSV-2 1998>2003 -AP8124267- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
2 |
AP8152282 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
3 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 2 |
||||||
|
4 |
AP8124289 - DIODES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
5 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
6 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
7 |
AP8148438 - SUPPORT RELAIS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
9 |
AP8138596 - COUV. BO?TE CENTRALE; More informationQuantity required : 1 |
||||||
|
10 |
AP8138776 - BO?TE PROT.CENTRALE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
11 |
AP8150015 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
12 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
13 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
|
14 |
AP8124932 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
14 |
AP8124523 - CABLAGE PRINCIPAL; More informationQuantity required : 1 |
||||||
|
15 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.JPG)
16 |
584509 - SENSOR DE CHUTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
17 |
AP8152117 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
18 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
19 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
21 |
AP8124826 - CABLES INJECTION; More informationQuantity required : 1 |
||||||
|
22 |
AP0265673 - CENTRALE More informationQuantity required : 1 |
||||||
|
23 |
AP0265246 - PIPE BOUGIE INT.; More informationQuantity required : 1 |
||||||
|
24 |
AP0265480 - BOBINE HT More informationQuantity required : 2 |
||||||
|
25 |
AP0265244 - PIPE BOUGIE EXT.; More informationQuantity required : 1 |
