Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

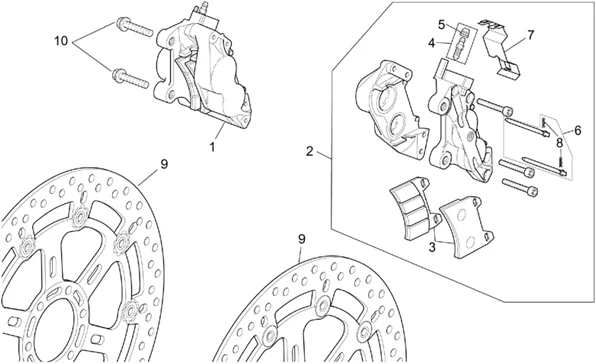

Chassis : 28.37 PINCE FREIN AVANT V ST-RS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.37.PNG)
1 |
AP8113774 - PINCE FR.AV.D.V.ROSSO; More informationQuantity required : 1 |
||||||
|
1 |
AP8133612 - MACHOIRE FREIN AV D OR; More informationQuantity required : 1 |
||||||
|
2 |
AP8113775 - PINCE FR.AV.G.ROUGE; More informationQuantity required : 1 |
||||||
|
2 |
AP8133613 - MACHOIRE FREIN AV G OR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/3/img/71323.jpg)
3 |
FRONT BRAKE PADS -"PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FUTURA, FALCO -AP8113754- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/6/img/71656.jpg)
3 |
FRONT BRAKE PADS -"PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, STELVIO, V9/APRILIA 750-1200 DORSODURO, 650 PEGASO, 1000 TUONO V2, 1000 TUONO V4 (PAIR) -AP813614- More informationQuantity required : 2 |
||||||
|
4 |
AP8213193 - PURGE AIR More informationQuantity required : 2 |
||||||
|
5 |
AP8113070 - CAPUCHON RENIFLARD More informationQuantity required : 2 |
||||||
|
6 |
AP8113721 - AXE +GOUPILLE PINCE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/2/img/46002.jpg)
7 |
SPRING-FOR BRAKE PADS "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, PEGASO, RST FUTURA, RSV-2, TUONO -AP8113722- More informationQuantity required : 2 |
||||||
|
8 |
AP8113723 - GOUPILLE; More informationQuantity required : 2 |
||||||
|
9 |
AP8113926 - DISQUE FREIN AVANT; More informationQuantity required : 2 |
||||||
|
9 |
AP8133781 - DISCO FRENO ANT.D.320 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/7/img/71977.jpg)
10 |
SCREW - FOR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO/MOTO-GUZZI 1200 SPORT, BREVA, NORGE, 1400 CALIFORNIA -AP8152385- More informationQuantity required : 4 |
