Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

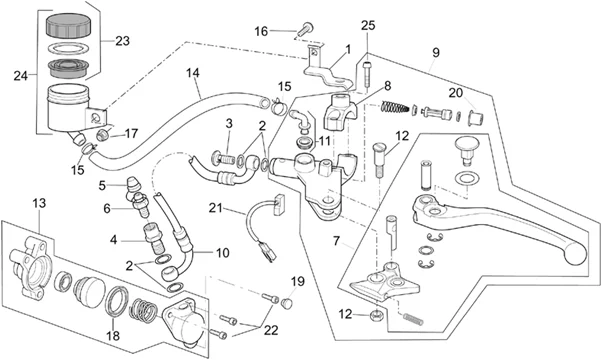

Chassis : 28.23 POMPE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.23.PNG)
1 |
CLUTCH MASTER CYLINDER SUPPORT- "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, 1000 TUONO, 1200 CAPONORD -AP8134898- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
2 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
3 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/7/img/46007.jpg)
4 |
AP8113762 - VIS PERCEE; More informationQuantity required : 1 |
||||||
|
5 |
AP8113230 - CAPUCHON RENIFLARD (20 PCS) More informationQuantity required : 1 |
||||||
|
6 |
AP8113761 - PURGE AIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/4/img/46004.jpg)
7 |
LEVIER EMBRAYAGE ORIGINE PIAGGIO APRILIA 1200 CAPONORD 2014> 1200 DORSODURO 2010>, 1000 RSV-2 1998>2003, 1000 TUONO 2002>2009 -AP8113758- More informationQuantity required : 1 |
||||||
|
8 |
AP8104631 - BASE SPECCHIO RETROVISORE More informationQuantity required : 1 |
||||||
|
8 |
AP8168217 - BASE RETROVISEUR; More informationQuantity required : 1 |
||||||
|
9 |
CLUTCH CONTROL MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 1000 TUONO, RSV-2 -854604- More informationQuantity required : 1 |
||||||
|
9 |
AP8176050 - POMPE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
10 |
AP8133574 - TUYAU EMBRAYAGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.JPG)
11 |
AP8213057 - RACCORD POMPE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
12 |
SCREW - FOR RIGHT/LEFT LEVER FASTENING "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA -2B003040- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/2/1/img/45521.jpg)
13 |
CLUTCH COMMAND CYLINDER "PIAGGIO GENUINE PART" 1000 CAPONORD, RSV-2, TUONO V2, FUTURA -AP8106381- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
14 |
RUBBER PIPE ON BRAKE FLUID TANK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -890509- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
15 |
AP8101595 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
16 |
AP8152273 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
17 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/5/4/img/71254.jpg)
18 |
CLUTCH CONTROL GASKET "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, CAPONORD, FUTURA, FALCO, TUONO -AP8106935- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
19 |
RUBBER SPACER "PIAGGIO GENUINE PART" APRILIA DORSODURO, RSV-2, RSV-4, TUONO -AP8144158- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/1/0/img/48710.jpg)
20 |
AP8133522 - COIFFE; More informationQuantity required : 1 |
||||||
|
21 |
AP8124398 - INTERR.EMBR.+CABLAGE; More informationQuantity required : 1 |
||||||
|
22 |
AP0241821 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
23 |
CAP FOR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO -AP8113553- More informationQuantity required : 1 |
||||||
|
24 |
AP8106382 - RESERVOIR HUILE CPL More informationQuantity required : 1 |
||||||
|
25 |
AP8213299 - VIS CALOTTE More informationQuantity required : 2 |
