Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

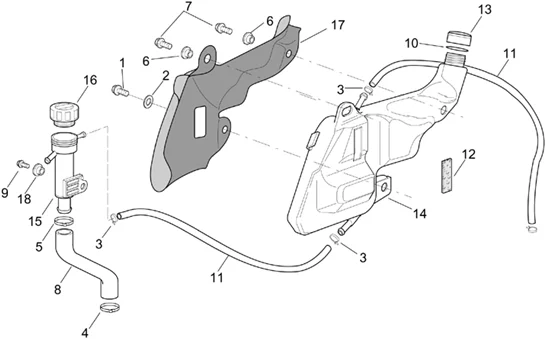

Chassis : 28.27 VASE D'EXPANSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
1 |
AP8224470 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/2/img/71872.jpg)
2 |
AP8150378 - RONDELLE More informationQuantity required : 1 |
||||||
3 |
AP8102378 - COLLIER More informationQuantity required : 3 |
||||||
|
4 |
AP8102732 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
5 |
AP8101927 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
6 |
AP8221145 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
6 |
AP8121795 - DOUILLE EN T More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
7 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
8 |
AP8144032 - TUYAU POMPE-EMBOUT More informationQuantity required : 1 |
||||||
|
9 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
10 |
AP8120355 - JOINT BOUCHON HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
11 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
12 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/3/0/8/img/45308.jpg)
13 |
AP8104124 - BOUCHON More informationQuantity required : 1 |
||||||
|
14 |
AP8138556 - VASE D'EXPANSION; More informationQuantity required : 1 |
||||||
|
15 |
AP8120988 - TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
|
16 |
AP8102615 - BOUCHON More informationQuantity required : 1 |
||||||
|
17 |
AP8168486 - PROTECTION; More informationQuantity required : 1 |
||||||
|
17 |
AP8168910 - PROTEZIONE VASO D'ESPANSIONE More informationQuantity required : 1 |
||||||
|
17 |
AP8179039 - PROTEZIONE VASO ESP.CARBONIO More informationQuantity required : 1 |
||||||
|
18 |
AP8221145 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
