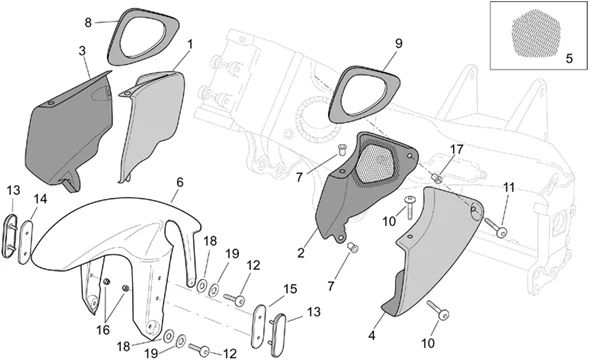

Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005 APRILIA

Chassis : 28.12 CARROSSERIE AV. - GARDE-BOUE AV
Carrosserie av. - Garde-boue AV
Search
Convoyeur D, c.;

1
P2R reference P2R reference
Maker reference Maker reference AP8168073

Convoyeur D, c.;

AP8168229 - CONVOYEUR D;

1
P2R reference P2R reference 53077
Maker reference Maker reference AP8168229

AP8168229 - CONVOYEUR D;

More information

Quantity required : 1

AP8168908 - CONVOGLIATORE DX INT.

1
P2R reference P2R reference 53455
Maker reference Maker reference AP8168908

AP8168908 - CONVOGLIATORE DX INT.

More information

Quantity required : 1

AP8179040 - CONVOGLIATORE DX INT.CARBONIO

1
P2R reference P2R reference 54296
Maker reference Maker reference AP8179040

AP8179040 - CONVOGLIATORE DX INT.CARBONIO

More information

Quantity required : 1

Convoyeur G, c.;

2
P2R reference P2R reference
Maker reference Maker reference AP8168074

Convoyeur G, c.;

AP8168230 - CONVOYEUR G;

2
P2R reference P2R reference 53078
Maker reference Maker reference AP8168230

AP8168230 - CONVOYEUR G;

More information

Quantity required : 1

AP8168909 - CONVOGLIATORE SX INT.

2
P2R reference P2R reference 53456
Maker reference Maker reference AP8168909

AP8168909 - CONVOGLIATORE SX INT.

More information

Quantity required : 1

AP8179041 - CONVOGLIATORE SX INT.CARBONIO

2
P2R reference P2R reference 54297
Maker reference Maker reference AP8179041

AP8179041 - CONVOGLIATORE SX INT.CARBONIO

More information

Quantity required : 1

Convoyeur D, c.;

3
P2R reference P2R reference
Maker reference Maker reference AP8168075

Convoyeur D, c.;

AP8168231 - CONVOYEUR D;

3
P2R reference P2R reference 53079
Maker reference Maker reference AP8168231

AP8168231 - CONVOYEUR D;

More information

Quantity required : 1

AP8179211 - CONVOGL.EST.DX CARB.V.TR.N/DEC

3
P2R reference P2R reference 151230
Maker reference Maker reference AP8179211

AP8179211 - CONVOGL.EST.DX CARB.V.TR.N/DEC

More information

Quantity required : 1

Convoyeur D, c.

3
P2R reference P2R reference
Maker reference Maker reference AP8168802

Convoyeur D, c.

AP8178244 - CONVOGLIATORE EST.DX V.GRIGIO

3
P2R reference P2R reference 53906
Maker reference Maker reference AP8178244

AP8178244 - CONVOGLIATORE EST.DX V.GRIGIO

More information

Quantity required : 1

AP8178434 - CONVOGLIATORE EST.DX CARB.

3
P2R reference P2R reference 54024
Maker reference Maker reference AP8178434

AP8178434 - CONVOGLIATORE EST.DX CARB.

More information

Quantity required : 1

AP8179212 - CONVOGL.EST.SX CARB.V.TR.N/DEC

4
P2R reference P2R reference 54401
Maker reference Maker reference AP8179212

AP8179212 - CONVOGL.EST.SX CARB.V.TR.N/DEC

More information

Quantity required : 1

Convoyeur G, c.;

4
P2R reference P2R reference
Maker reference Maker reference AP8168076

Convoyeur G, c.;

AP8168232 - CONVOYEUR G;

4
P2R reference P2R reference 53080
Maker reference Maker reference AP8168232

AP8168232 - CONVOYEUR G;

More information

Quantity required : 1

Convoyeur G, c.

4
P2R reference P2R reference
Maker reference Maker reference AP8168803

Convoyeur G, c.

AP8178245 - CONVOGLIATORE EST.SX V.GRIGIO

4
P2R reference P2R reference 53907
Maker reference Maker reference AP8178245

AP8178245 - CONVOGLIATORE EST.SX V.GRIGIO

More information

Quantity required : 1

AP8178435 - CONVOGLIATORE EST.SX CARB.

4
P2R reference P2R reference 54025
Maker reference Maker reference AP8178435

AP8178435 - CONVOGLIATORE EST.SX CARB.

More information

Quantity required : 1

AP8168222 - GRILLE PRISE AIR;

5
P2R reference P2R reference 53071
Maker reference Maker reference AP8168222

AP8168222 - GRILLE PRISE AIR;

More information

Quantity required : 2

Garde-boue AV carb.;

6
P2R reference P2R reference
Maker reference Maker reference AP8156006

Garde-boue AV carb.;

AP8156070 - PARAFANGO ANT.CARB.V.

6
P2R reference P2R reference 51175
Maker reference Maker reference AP8156070

AP8156070 - PARAFANGO ANT.CARB.V.

More information

Quantity required : 1

AP8156193 - PARAFANGO ANT.CARBONIO

6
P2R reference P2R reference 51251
Maker reference Maker reference AP8156193

AP8156193 - PARAFANGO ANT.CARBONIO

More information

Quantity required : 1

AP8156024 - GARDE-BOUE AV;

6
P2R reference P2R reference 51142
Maker reference Maker reference AP8156024

AP8156024 - GARDE-BOUE AV;

More information

Quantity required : 1

Garde-boue AV carb.;

6
P2R reference P2R reference
Maker reference Maker reference AP8156039

Garde-boue AV carb.;

AP8156043 - GARDE-BOUE AV;

6
P2R reference P2R reference 51152
Maker reference Maker reference AP8156043

AP8156043 - GARDE-BOUE AV;

More information

Quantity required : 1

AP8156054 - GARDE-BOUE AV;

6
P2R reference P2R reference 51163
Maker reference Maker reference AP8156054

AP8156054 - GARDE-BOUE AV;

More information

Quantity required : 1

AP8156057 - GARDE-BOUE AV;

6
P2R reference P2R reference 51165
Maker reference Maker reference AP8156057

AP8156057 - GARDE-BOUE AV;

More information

Quantity required : 1

AP8156113 - PARAFANGO ANT.V.NERO DARKNESS

6
P2R reference P2R reference 51200
Maker reference Maker reference AP8156113

AP8156113 - PARAFANGO ANT.V.NERO DARKNESS

More information

Quantity required : 1

AP8156115 - PARAFANGO ANT.V.SILVER MIRROR

6
P2R reference P2R reference 51201
Maker reference Maker reference AP8156115

AP8156115 - PARAFANGO ANT.V.SILVER MIRROR

More information

Quantity required : 1

AP8156117 - PARAFANGO ANT.V.ROSSO FLUO

6
P2R reference P2R reference 51202
Maker reference Maker reference AP8156117

AP8156117 - PARAFANGO ANT.V.ROSSO FLUO

More information

Quantity required : 1

NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531-

7
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531-

More information

Quantity required : 4

AP8144588 - JOINT CANALISATION

8
P2R reference P2R reference 49774
Maker reference Maker reference AP8144588

AP8144588 - JOINT CANALISATION

More information

Quantity required : 1

AP8144603 - JOINT

8
P2R reference P2R reference 49783
Maker reference Maker reference AP8144603

AP8144603 - JOINT

More information

Quantity required : 1

AP8144589 - JOINT

9
P2R reference P2R reference 49775
Maker reference Maker reference AP8144589

AP8144589 - JOINT

More information

Quantity required : 1

AP8144604 - JOINT CANALISATION GAU.

9
P2R reference P2R reference 49784
Maker reference Maker reference AP8144604

AP8144604 - JOINT CANALISATION GAU.

More information

Quantity required : 1

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

10
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

More information

Quantity required : 4

AP8152418 - VIS

10
P2R reference P2R reference 51008
Maker reference Maker reference AP8152418

AP8152418 - VIS

More information

Quantity required : 4

AP8152423 - VIS

11
P2R reference P2R reference 51011
Maker reference Maker reference AP8152423

AP8152423 - VIS

More information

Quantity required : 2

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

12
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

More information

Quantity required : 4

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

12
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

More information

Quantity required : 4

AP8152416 - VIS

12
P2R reference P2R reference 51007
Maker reference Maker reference AP8152416

AP8152416 - VIS

More information

Quantity required : 4

AP8124719 - CATADIOPTRE, AMBRE

13
P2R reference P2R reference 71569
Maker reference Maker reference AP8124719

AP8124719 - CATADIOPTRE, AMBRE

More information

Quantity required : 2

AP8148588 - SUPPORT CATAD.AV.D.;

14
P2R reference P2R reference 50372
Maker reference Maker reference AP8148588

AP8148588 - SUPPORT CATAD.AV.D.;

More information

Quantity required : 1

AP8148589 - SUPPORT CATAD.AV.G.;

15
P2R reference P2R reference 50373
Maker reference Maker reference AP8148589

AP8148589 - SUPPORT CATAD.AV.G.;

More information

Quantity required : 1

AP8150204 - ECROU AUTOFR. BAS

16
P2R reference P2R reference 71839
Maker reference Maker reference AP8150204

AP8150204 - ECROU AUTOFR. BAS

More information

Quantity required : 4

AP8221017 - ENTRETOISE

17
P2R reference P2R reference 56990
Maker reference Maker reference AP8221017

AP8221017 - ENTRETOISE

More information

Quantity required : 2

AP8150382 - RONDELLE

18
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

AP8150382 - RONDELLE

More information

Quantity required : 4

AP8150272 - RONDELLE ELASTIQUE COURBE

19
P2R reference P2R reference 97084
Maker reference Maker reference AP8150272

AP8150272 - RONDELLE ELASTIQUE COURBE

More information

Quantity required : 4
