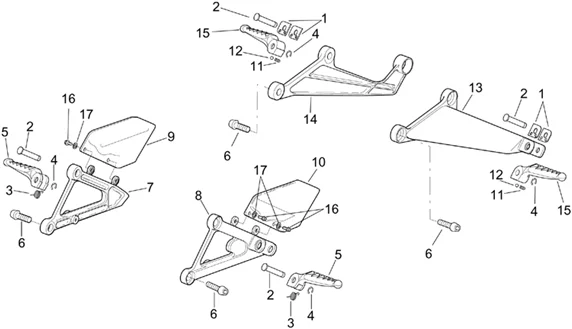

Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005 APRILIA

Chassis : 28.04 REPOSE-PIEDS
Repose-Pieds
Search
AP8134451 - PLAQUE FDC R-PIED;

1
P2R reference P2R reference 71703
Maker reference Maker reference AP8134451

AP8134451 - PLAQUE FDC R-PIED;

More information

Quantity required : 4
AP8121224 - RESSORT RETOUR REPOSE-PIEDS

3
P2R reference P2R reference 71454
Maker reference Maker reference AP8121224

AP8121224 - RESSORT RETOUR REPOSE-PIEDS

More information

Quantity required : 2
STOP RING FOR FOOTREST "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA +MOTO-GUZZI MOTORBIKE RANGE -AP8120573-

4
P2R reference P2R reference 71404
Maker reference Maker reference AP8120573

STOP RING FOR FOOTREST "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA +MOTO-GUZZI MOTORBIKE RANGE -AP8120573-

More information

Quantity required : 4
SCREW - (8x30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288-

6
P2R reference P2R reference 71950
Maker reference Maker reference AP8152288

SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288-

More information

Quantity required : 8
AP8146336 - PEDANA DX PILOTA COMPLETA

7
P2R reference P2R reference 49982
Maker reference Maker reference AP8146336

AP8146336 - PEDANA DX PILOTA COMPLETA

More information

Quantity required : 1
AP8134912 - SUP.PL.PILOTE DTE;

7
P2R reference P2R reference 49085
Maker reference Maker reference AP8134912

AP8134912 - SUP.PL.PILOTE DTE;

More information

Quantity required : 1
AP8146337 - PEDANA SX PILOTA COMPLETA

8
P2R reference P2R reference 49983
Maker reference Maker reference AP8146337

AP8146337 - PEDANA SX PILOTA COMPLETA

More information

Quantity required : 1
AP8134913 - SUP.PL.PILOTE GCHE;

8
P2R reference P2R reference 49086
Maker reference Maker reference AP8134913

AP8134913 - SUP.PL.PILOTE GCHE;

More information

Quantity required : 1
AP8179036 - PROTEZIONE PED.DX PILOTA CARB.

9
P2R reference P2R reference 54292
Maker reference Maker reference AP8179036

AP8179036 - PROTEZIONE PED.DX PILOTA CARB.

More information

Quantity required : 1
AP8146300 - PROT.REP.-P.PIL. DR.;

9
P2R reference P2R reference 49979
Maker reference Maker reference AP8146300

AP8146300 - PROT.REP.-P.PIL. DR.;

More information

Quantity required : 1
AP8146709 - PROT.REP.-P.PIL. DR.;

9
P2R reference P2R reference 50083
Maker reference Maker reference AP8146709

AP8146709 - PROT.REP.-P.PIL. DR.;

More information

Quantity required : 1
AP8146766 - PROTEZIONE PED.DX PILOTA CARB.

9
P2R reference P2R reference 50108
Maker reference Maker reference AP8146766

AP8146766 - PROTEZIONE PED.DX PILOTA CARB.

More information

Quantity required : 1
AP8146301 - PROT.REP.-P.PIL. G.;

10
P2R reference P2R reference 49980
Maker reference Maker reference AP8146301

AP8146301 - PROT.REP.-P.PIL. G.;

More information

Quantity required : 1
AP8146710 - PROT.REP.-P.PIL. G.;

10
P2R reference P2R reference 50084
Maker reference Maker reference AP8146710

AP8146710 - PROT.REP.-P.PIL. G.;

More information

Quantity required : 1
AP8146767 - PROTEZIONE PED.SX PILOTA CARB.

10
P2R reference P2R reference 50109
Maker reference Maker reference AP8146767

AP8146767 - PROTEZIONE PED.SX PILOTA CARB.

More information

Quantity required : 1
AP8179037 - PROTEZIONE PED.SX PILOTA CARB.

10
P2R reference P2R reference 54293
Maker reference Maker reference AP8179037

AP8179037 - PROTEZIONE PED.SX PILOTA CARB.

More information

Quantity required : 1
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133-

11
P2R reference P2R reference 71437
Maker reference Maker reference AP8121133

FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133-

More information

Quantity required : 2
BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861-

12
P2R reference P2R reference 71163
Maker reference Maker reference AP8101861

BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861-

More information

Quantity required : 2
AP8146385 - PEDANA SX PASSEGGERO COMPLETA

13
P2R reference P2R reference 49996
Maker reference Maker reference AP8146385

AP8146385 - PEDANA SX PASSEGGERO COMPLETA

More information

Quantity required : 1
AP8134914 - SUPPORT R-P. G PASS.;

13
P2R reference P2R reference 49087
Maker reference Maker reference AP8134914

AP8134914 - SUPPORT R-P. G PASS.;

More information

Quantity required : 1
AP8146384 - PEDANA DX PASSEGGERO COMPLETA

14
P2R reference P2R reference 49995
Maker reference Maker reference AP8146384

AP8146384 - PEDANA DX PASSEGGERO COMPLETA

More information

Quantity required : 1
AP8146466 - R-pied pass.-paire

15
P2R reference P2R reference 151080
Maker reference Maker reference AP8146466

AP8146466 - R-PIED PASS.-PAIRE

More information

Quantity required : 1
AP8152277 - VIS BRIDE

16
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

AP8152277 - VIS BRIDE

More information

Quantity required : 4
959614 - VIS

16
P2R reference P2R reference 70921
Maker reference Maker reference 959614

959614 - VIS

More information

Quantity required : 4
658830 - RONDELLE

17
P2R reference P2R reference 109834
Maker reference Maker reference 658830

658830 - RONDELLE

More information

Quantity required : 4
