Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

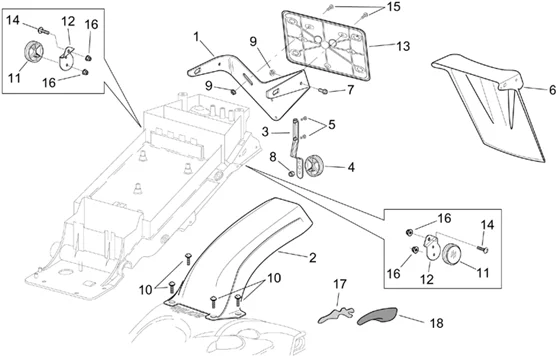

Chassis : 28.20 GARDE-BOUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.20.PNG)
1 |
AP8126775 - SUPPORT PLAQUE; More informationQuantity required : 1 |
||||||
|
1 |
AP8156007 - SUPPORT PLAQUE; More informationQuantity required : 1 |
||||||
|
2 |
AP8156078 - PARAFANGO POST. More informationQuantity required : 1 |
||||||
|
2 |
AP8126579 - GARDE-BOUE ARR.BAS; More informationQuantity required : 1 |
||||||
|
2 |
AP8156212 - PARAFANGO POST.CARB.V.TRAS.N/D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/2/img/71702.jpg)
3 |
REAR REFLECTOR SUPPORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8134448- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
4 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
5 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267- More informationQuantity required : 2 |
||||||
|
5 |
AP8152416 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/8/6/1/img/47861.jpg)
6 |
LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2 -AP8126591- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
7 |
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137- More informationQuantity required : 2 |
||||||
|
7 |
AP8152420 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
8 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
9 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 6 |
||||||
|
10 |
AP8152418 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 4 |
||||||
|
11 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164- More informationQuantity required : 2 |
||||||
|
12 |
AP8148587 - AR.SUPPORT CATADIOPTRE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
13 |
NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI + MAXISCOOTER APRILIA -AP8149034- More informationQuantity required : 1 |
||||||
|
14 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.JPG)
15 |
AP8150340 - VIS More informationQuantity required : 2 |
||||||
|
16 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
|
18 |
AP8179027 - PROTEZIONE SX FORCELLONE CARB. More informationQuantity required : 1 |
||||||
|
18 |
AP8168797 - PROTEZIONE SX FORCELLONE CARB. More informationQuantity required : 1 |
||||||
|
18 |
AP8168484 - PROTECTION GA.FOURCHE ARRIERE; More informationQuantity required : 1 |
