Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

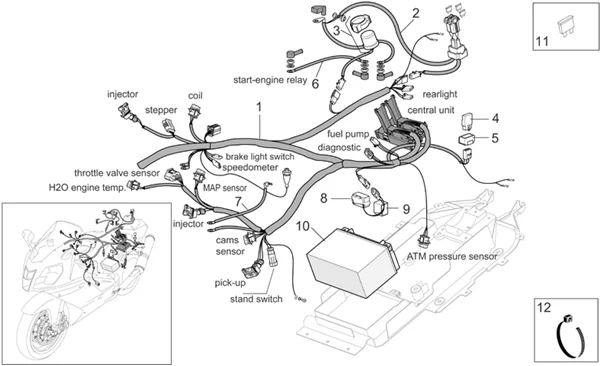

Chassis : 28.54 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.54.PNG)
1 |
AP8127150 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
|
1 |
CABLE BUNDLE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2 -AP8127681- More informationQuantity required : 1 |
||||||
|
2 |
AP8127148 - CABLAGGIO RICARICA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/0/img/71280.jpg)
3 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, CAPONORD, 650 PEGASSO, 125-250-500 ATLANTIC, SCARABEO -AP81129275- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
4 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
5 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
6 |
AP8127145 - CAVO MOTORINO AVV.TO-RELE' More informationQuantity required : 1 |
||||||
|
7 |
AP8127149 - CABLAGGIO MASSA-BATTERIA MOTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.JPG)
8 |
584509 - SENSOR DE CHUTE More informationQuantity required : 1 |
||||||
|
9 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
|
10 |
583158 - BATTERIE 12V/12A YUASA YTX12-BS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.JPG)
12 |
AP8120657 - COLLIER More informationQuantity required : 3 |
