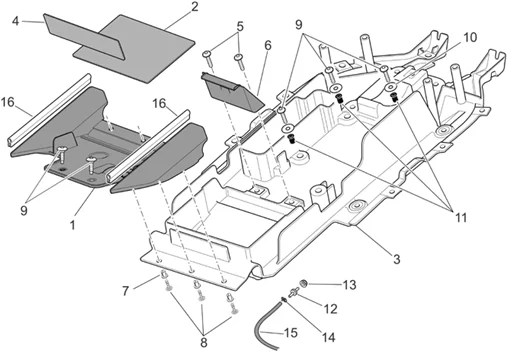

Chassis : 28.27 DESSOUS SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.27.PNG)
1 |
AP8158146 - CHIUSURA INF.ANT.REGGISELLA More informationQuantity required : 1 |
|||||||||
|
2 |
AP8144553 - GOMMA INF. APPOGGIO BATTERIA More informationQuantity required : 1 |
|||||||||
|
3 |
AP8179287 - CHIUSURA INF.POST.REGGISELLA More informationQuantity required : 1 |
|||||||||
|
4 |
AP8144552 - GOMMA LAT. APPOGGIO BATTERIA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
|||||||||
|
6 |
AP8134788 - STAFFA FISSAGGIO BATTERIA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
7 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616- More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
8 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
10 |
AP8121795 - DOUILLE EN T More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
11 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 3 |
|||||||||
|
12 |
AP8104879 - CODOLO PER CATADIOTTRO ANT. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
13 |
AP8150026 - ECROU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/8/img/71388.jpg)
14 |
AP8120179 - COLLIER More informationQuantity required : 1 |
|||||||||
|
15 |
AP8220598 - TUYAU DE PURGE More informationQuantity required : 1 |
|||||||||
|
16 |
AP8117284 - GUARNIZIONE ANTICALORE More informationQuantity required : 2 |
|||||||||
