Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

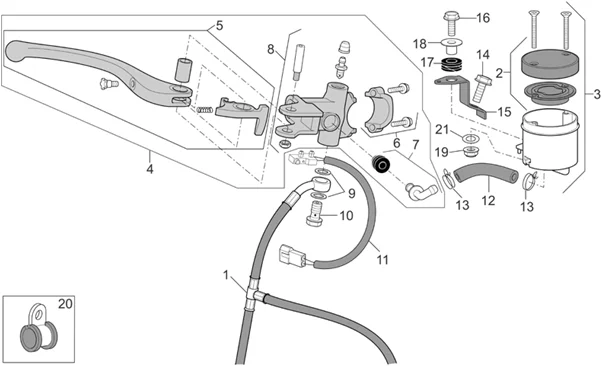

Chassis : 28.32 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.32.PNG)
1 |
AP8133618 - TUBO FRENO ANTERIORE More informationQuantity required : 1 |
||||||
|
2 |
AP8113598 - BOUCHON RES.HUILE FREINS More informationQuantity required : 1 |
||||||
|
3 |
TANK FOR FRONT BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, FALCO, FUTURA, 750-1200 DORSODURO, 1200 CAPONORD -AP8113499- More informationQuantity required : 1 |
||||||
|
4 |
AP8133663 - POMPA FRENO ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/7/1/img/176071.JPG)
5 |
2B007071 - FRONT BRAKE LEVER More informationQuantity required : 1 |
||||||
|
5 |
2B007071 - FRONT BRAKE LEVER More informationQuantity required : 1 |
||||||
|
6 |
AP8133665 - CAVALLOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.JPG)
7 |
AP8213057 - RACCORD POMPE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/1/img/71661.jpg)
8 |
LEVER/MASTER CYLINDER PIN "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, 1100 TUONO -AP8133666- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
AP8113004 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/2/img/71652.jpg)
10 |
BRAKE HOSE BANJO "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE MOTO-GUZZI -AP8133594- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/9/img/71599.JPG)
11 |
AP8127432 - MICROINTERRUTTORE STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
12 |
RUBBER PIPE ON BRAKE FLUID TANK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -890509- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
13 |
AP8101595 - COLLIER More informationQuantity required : 2 |
||||||
|
14 |
AP8152462 - VITE TER M6 X 10 ERGAL ARGENTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/2/0/img/50920.jpg)
14 |
AP8150537 - VITE TBEI M6 X 12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
14 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
15 |
AP8134383 - PLAQ. RESERV. HUILE; More informationQuantity required : 1 |
||||||
|
15 |
AP8154073 - PIASTRINA SUPP.SERB.OLIO FRENI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
16 |
AP8152280 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
16 |
AP8152464 - VITE TER M6 X 25 ERGAL ARGENTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
16 |
AP8224470 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
17 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
18 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
||||||
|
19 |
AP8150474 - ECROU BORGNE INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
19 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
19 |
AP8152466 - DADO AUTOBLOCC.M6 ERGAL ARG. More informationQuantity required : 1 |
||||||
|
20 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
21 |
658830 - RONDELLE More informationQuantity required : 1 |
