Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

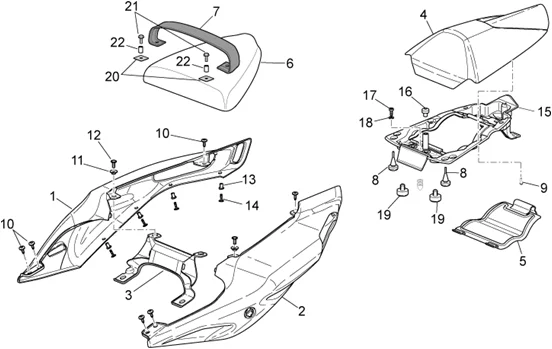

Chassis : 28.26 CARROSSERIE AR. - QU.CAR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.26.PNG)
1 |
AP8179277 - CODONE LATERALE DX More informationQuantity required : 1 |
|||||||||
|
1 |
AP8184705 - QUEUE, BLANC More informationQuantity required : 1 |
|||||||||
|
1 |
AP8179455 - CODONE LAT.DX V.GRIGIO DUST More informationQuantity required : 1 |
|||||||||
|
1 |
AP8179465 - CODONE LAT.DX V.GRIGIO DUST More informationQuantity required : 1 |
|||||||||
|
1 |
AP8184322 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
1 |
AP8184337 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
1 |
AP8184358 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
1 |
AP8184403 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
1 |
AP8184686 - QUEUE D, BLEU More informationQuantity required : 1 |
|||||||||
|
2 |
AP8184687 - QUEUE D, BLEU More informationQuantity required : 1 |
|||||||||
|
2 |
AP8179435 - CODONE LATERALE SX More informationQuantity required : 1 |
|||||||||
|
2 |
AP8179456 - CODONE LAT.SX V.GRIGIO DUST More informationQuantity required : 1 |
|||||||||
|
2 |
AP8179466 - CODONE LAT.SX V.GRIGIO DUST More informationQuantity required : 1 |
|||||||||
|
2 |
AP8184323 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8184338 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8184359 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8184404 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8184706 - QUEUE, BLANC More informationQuantity required : 1 |
|||||||||
|
3 |
AP8179436 - CHIUSURA CENTRALE CODONE More informationQuantity required : 1 |
|||||||||
|
3 |
AP8179831 - FERMETURE QUEUE More informationQuantity required : 1 |
|||||||||
|
3 |
AP8184324 - SERRURE More informationQuantity required : 1 |
|||||||||
|
3 |
AP8184339 - SERRURE More informationQuantity required : 1 |
|||||||||
|
3 |
AP8184360 - SERRURE More informationQuantity required : 1 |
|||||||||
|
3 |
AP8184649 - FERMETURE CARENE, BLANC More informationQuantity required : 1 |
|||||||||
|
3 |
AP8184688 - FERMETURE CARENE, BLEUE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8179457 - COPRISELLINO V.ROSSO FLUO More informationQuantity required : 1 |
|||||||||
|
4 |
AP8184689 - COUVRE-SELLE, BLEU More informationQuantity required : 1 |
|||||||||
|
4 |
AP8179393 - COPRISELLINO More informationQuantity required : 1 |
|||||||||
|
4 |
AP8179467 - COPRISELLINO V.BIANCO APRILIA More informationQuantity required : 1 |
|||||||||
|
4 |
AP8179484 - COPRISELLINO More informationQuantity required : 1 |
|||||||||
|
4 |
AP8184325 - COVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8184340 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8184361 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8184393 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8184406 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8184708 - COUVRE-SELLE, BLANC More informationQuantity required : 1 |
|||||||||
|
5 |
AP8158138 - SPORTELLINO COPRISELLINO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/5/9/7/img/48597.jpg)
6 |
SADDLE- FOR PASSENGER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO BLACKE -AP8129467- More informationQuantity required : 1 |
|||||||||
|
6 |
AP8129474 - SELLA PASSEGGERO ROSSA More informationQuantity required : 1 |
|||||||||
|
7 |
AP8129468 - CINGHIA SELLINO PASSEGGERO More informationQuantity required : 1 |
|||||||||
|
7 |
AP8129475 - CINGHIA PASSEGGERO ROSSA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/5/img/72275.jpg)
8 |
AP8220238 - CAOUTCHOUC More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
10 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 6 |
|||||||||
|
11 |
AP8221145 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
12 |
AP8224470 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
13 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616- More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
14 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 8 |
|||||||||
|
15 |
AP8179075 - BASE COPRISELLINO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
16 |
RUBBER SPACER "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA/MOTO-GUZZI MOTORBIKES -AP8144081 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
17 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
18 |
AP8150011 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
19 |
AP8220349 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 2 |
|||||||||
|
20 |
AP8134654 - PLAQUETTE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
21 |
AP8152283 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.jpg)
22 |
AP8120253 - ENTRETOISE More informationQuantity required : 2 |
|||||||||
