Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

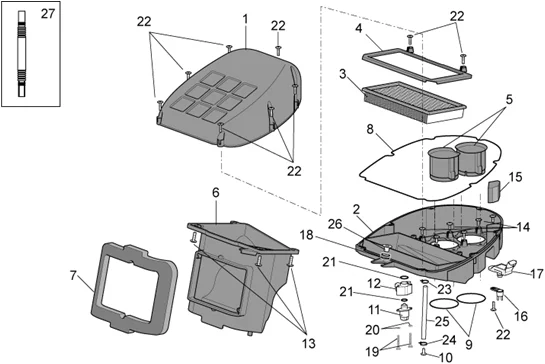

Chassis : 28.37 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.37.PNG)
1 |
AP8158111 - COPERCHIO CASSA FILTRO More informationQuantity required : 1 |
||||||
|
2 |
AP8158112 - FONDO CASSA FILTRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/2/img/71222.jpg)
3 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4 APRC, TUONO, 450-500 RXV, SXV/MOTO-GUZZI 1400 AUDACE, CALIFORNIA 2012>, ELDORADO, 1200 GRISO, STELVIO -AP8104329- More informationQuantity required : 1 |
||||||
|
4 |
AP8104335 - CORNICE FILTRO More informationQuantity required : 1 |
||||||
|
5 |
AP8176046 - TROMBONCINO DI ASPIR.D57 H30 More informationQuantity required : 2 |
||||||
|
6 |
AP8158119 - COLLETTORE CASSA FILTRO More informationQuantity required : 1 |
||||||
|
7 |
AP8144456 - GUARNIZIONE COLLETTORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
8 |
AP8120615 - JOINT More informationQuantity required : 1 |
||||||
|
9 |
AP8144581 - ANELLO OR 3231 More informationQuantity required : 2 |
||||||
|
10 |
AP8120876 - BOUCHON DE FERMETURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/6/9/1/img/47691.jpg)
11 |
INLET REGULATION ENGINE "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, CAPONORD -AP8124981- More informationQuantity required : 1 |
||||||
|
12 |
AP8149165 - SOUPAPE REGLAGE MINI; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
13 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
14 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 6 |
||||||
|
15 |
AP8104525 - FILTRE BLOW-BY More informationQuantity required : 1 |
||||||
|
16 |
AP8144551 - RACCORDO MAP More informationQuantity required : 1 |
||||||
|
17 |
AP0274055 - SENSORE PRESSIONE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
18 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
19 |
AP8150406 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.JPG)
20 |
AP8150272 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/2/9/img/56829.JPG)
21 |
AP8220095 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
22 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
23 |
AP8101595 - COLLIER More informationQuantity required : 1 |
||||||
|
24 |
AP8102377 - COLLIER More informationQuantity required : 1 |
||||||
|
25 |
AP8144038 - TUYAU ESSENCE 6X10 More informationQuantity required : 1 |
||||||
|
26 |
AP8121023 - RESSORT REGLAGE PHARE More informationQuantity required : 1 |
||||||
|
27 |
AP8144605 - TUYAU NORMAFLEX More informationQuantity required : 1 |
