Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

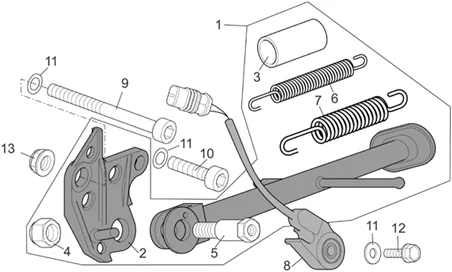

Chassis : 28.10 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.10.PNG)
1 |
AP8145055 - CAVALLETTO COMPLETO More informationQuantity required : 1 |
||||||
|
1 |
AP8146732 - ASSIEME CAVALLETTO LAT. More informationQuantity required : 1 |
||||||
|
1 |
AP8146944 - CAVALLETTO COMPLETO More informationQuantity required : 1 |
||||||
|
2 |
AP8134887 - PIASTRA CAVALLETTO More informationQuantity required : 1 |
||||||
|
2 |
AP8146731 - PIASTRA SUPP.CAVALLETTO LAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
3 |
SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524- More informationQuantity required : 1 |
||||||
|
4 |
AP8150480 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
4 |
NUT - FOR SIDE STAND (10X1,25) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8152001- More informationQuantity required : 1 |
||||||
|
5 |
AP8121429 - VIS FIX. BEQUILLE More informationQuantity required : 1 |
||||||
|
5 |
AP8121375 - VIS FIX. BEQUILLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
6 |
RETURN SPRING FOR STAND (SMALL) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8121014- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
7 |
AP8221197 - RESSORT RAPPEL BEQ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/8/img/69688.jpg)
8 |
STAND SWITCH "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1100 BREVA, GRISO -854889- More informationQuantity required : 1 |
||||||
|
9 |
AP8152440 - VITE TE FLANGIATA M10 X 90 More informationQuantity required : 1 |
||||||
|
10 |
AP8150196 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.JPG)
11 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
12 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
12 |
AP8152463 - VITE TER M6 X 20 ERGAL ARGENTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
13 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
