Vehicle Exploded View - MOTO-GUZZI QUOTA 1000 1992-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

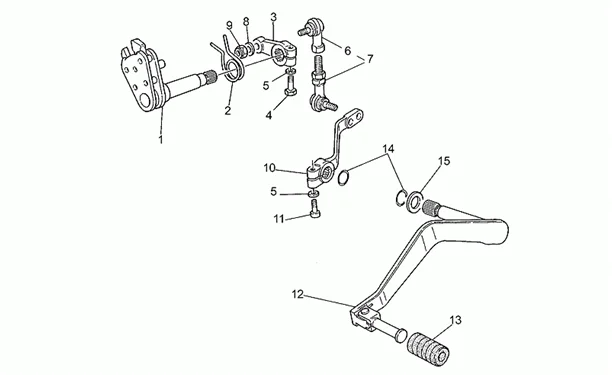

Chassis : 33.33 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.33.PNG)
1 |
GU03236250 - PRESELETTORE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/6/img/130136.jpg)
2 |
PRIMARY GEARBOX SELECTOR SPRING "PIAGGIO GENUINE PART" COMMON TO MOTO-GUZZI RANGE -GU28238261- More informationQuantity required : 1 |
||||||
|
3 |
GU19258220 - LEVIER COMM.PRESEL. More informationQuantity required : 1 |
||||||
|
4 |
GU98052325 - VIS More informationQuantity required : 1 |
||||||
|
6 |
GU30257725 - FOURCHETTE CPL. More informationQuantity required : 2 |
||||||
|
8 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
|
9 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
11 |
GU98622325 - VIS M6X25 More informationQuantity required : 1 |
||||||
|
12 |
GU30250830 - PEDALE FREINS More informationQuantity required : 1 |
||||||
|
12 |
GU30250832 - LEVIER COMMANDE VITESSES CPL. More informationQuantity required : 1 |
||||||
|
13 |
GU30251025 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
14 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180- More informationQuantity required : 2 |
||||||
|
15 |
GU30252930 - ENTRETOISE More informationQuantity required : 1 |
