Vehicle Exploded View - MOTO-GUZZI QUOTA 1000 1992-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

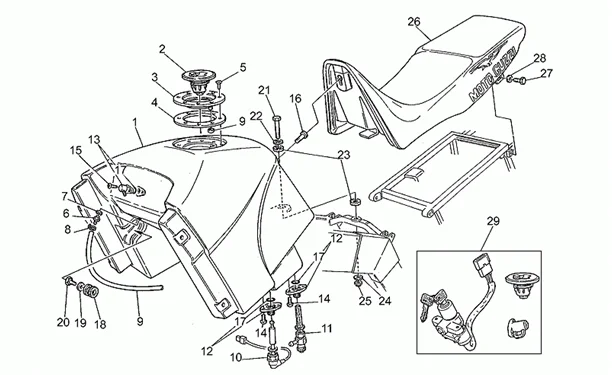

Chassis : 33.18 RÉSERVOIR CARBURANT-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.18.PNG)
1 |
GU301002301 - RESERVOIR More informationQuantity required : 1 |
||||||
|
3 |
GU30102300 - BAGUE More informationQuantity required : 1 |
||||||
|
5 |
GU98250512 - VIS More informationQuantity required : 8 |
||||||
|
6 |
GU30103730 - RACCORD More informationQuantity required : 1 |
||||||
|
7 |
GU30104630 - JOINT More informationQuantity required : 1 |
||||||
|
8 |
GU61108500 - COLLIER D9 More informationQuantity required : 1 |
||||||
|
9 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
|
10 |
GU30103030 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/4/2/3/img/101423.jpg)
11 |
FUEL TAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, QUOTA, 1100 SPORT, V11, CALIFORNIA -GU01105460- More informationQuantity required : 2 |
||||||
|
12 |
GU01101830 - FLANGIA More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
14 |
GU98230510 - VIS M5X10 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.JPG)
15 |
AP8150340 - VIS More informationQuantity required : 2 |
||||||
|
15 |
AP8150340 - VIS More informationQuantity required : 2 |
||||||
|
18 |
GU91551166 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
19 |
GU95100256 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU98054416 - VIS M8X16 More informationQuantity required : 2 |
||||||
|
22 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 1 |
||||||
|
23 |
GU93110082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
24 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
25 |
GU92630106 - ECROU M6X1 More informationQuantity required : 1 |
||||||
|
27 |
GU98054416 - VIS M8X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
28 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
