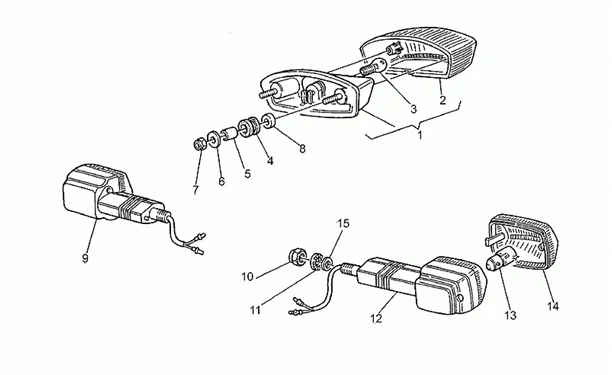

Chassis : 33.07 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.07.PNG)
1 |
GU31740960 - FEU ARRIERE More informationQuantity required : 1 |
||||||
|
2 |
GU31741760 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
3 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
4 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
5 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
6 |
GU95100118 - RONDELLE 6,2X18X1 More informationQuantity required : 2 |
||||||
|
7 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
8 |
GU91180605 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
9 |
GU31750630 - CLIGNOTANT More informationQuantity required : 1 |
||||||
|
10 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 2 |
||||||
|
11 |
GU95022112 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
12 |
GU31750630 - CLIGNOTANT More informationQuantity required : 1 |
||||||
|
13 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
14 |
GU31753730 - CABOCHON More informationQuantity required : 2 |
||||||
|
15 |
GU95000213 - RONDELLE More informationQuantity required : 2 |
