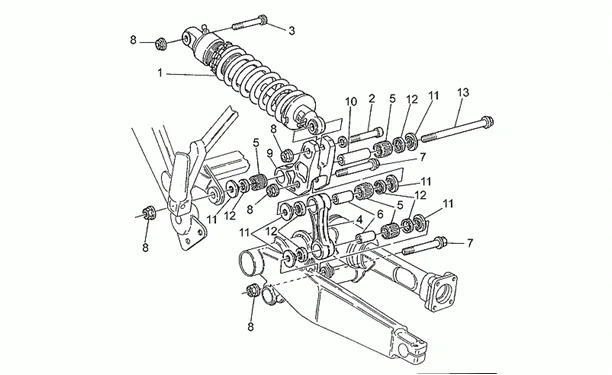

Chassis : 33.01 AMORTISSEUR AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.01.PNG)
1 |
GU30550231 - AMORTISSEUR More informationQuantity required : 1 |
||||||
|
3 |
GU98620555 - VIS More informationQuantity required : 1 |
||||||
|
4 |
GU30562630 - BIELLE SIMPLE COMPLETE More informationQuantity required : 1 |
||||||
|
6 |
GU30561831 - BAGUE More informationQuantity required : 2 |
||||||
|
7 |
GU30562030 - PIVOT BIELLE More informationQuantity required : 2 |
||||||
|
8 |
GU92660210 - ECROU More informationQuantity required : 5 |
||||||
|
9 |
GU30560430 - CULBUTEUR CPL. More informationQuantity required : 1 |
||||||
|
10 |
GU30562931 - BAGUE More informationQuantity required : 1 |
||||||
|
11 |
GU30563030 - ENTRETOISE More informationQuantity required : 6 |
||||||
|
12 |
GU90402026 - BAGUE D'ETANCHEITE More informationQuantity required : 6 |
