Vehicle Exploded View - MOTO-GUZZI QUOTA 1000 1992-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

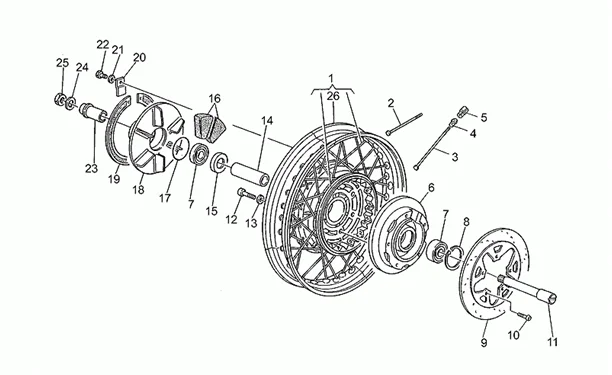

Chassis : 33.17 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.17.PNG)
1 |
GU30630626 - ROUE ARRIERE More informationQuantity required : 1 |
||||||
|
2 |
GU30631130 - RAYON 135 MM More informationQuantity required : 20 |
||||||
|
3 |
GU30631430 - RAYON LONG More informationQuantity required : 20 |
||||||
|
4 |
GU27611710 - NIPPLES More informationQuantity required : 40 |
||||||
|
5 |
GU12616101 - CONTREPOIDS 15 GR. More informationQuantity required : 1 |
||||||
|
5 |
GU12616102 - CONTREPOIDS 20 GR. More informationQuantity required : 1 |
||||||
|
5 |
GU12616103 - CONTREPOIDS 30 GR. More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
6 |
FLASQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
7 |
ROULEMENT DE ROUE (20X47X14) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU92204220- More informationQuantity required : 2 |
||||||
|
8 |
GU90272047 - BAGUE SEEGER 47X50,5 More informationQuantity required : 1 |
||||||
|
9 |
Disque frein arrière |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/8/0/img/132980.jpg)
10 |
GU98230825 - VIS More informationQuantity required : 5 |
||||||
|
11 |
GU28633300 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
12 |
GU98622430 - VIS M8X30 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
13 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 6 |
||||||
|
14 |
GU14634051 - ENTRETOISE ROULEMENTS More informationQuantity required : 1 |
||||||
|
15 |
GU17633550 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
GU01336800 - PARASTRAPPI More informationQuantity required : 12 |
||||||
|
17 |
GU90706490 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
18 |
GU14335203 - DISQUE PIECE EN CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
19 |
GU14335303 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
|
20 |
GU17335950 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
21 |
Rondelle évent. |
||||||
|
22 |
GU98054312 - VIS More informationQuantity required : 1 |
||||||
|
23 |
GU17634150 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
24 |
GU14634400 - RONDELLE More informationQuantity required : 1 |
||||||
|
25 |
GU92602316 - ECROU M6X1,5 More informationQuantity required : 1 |
||||||
|
26 |
|
