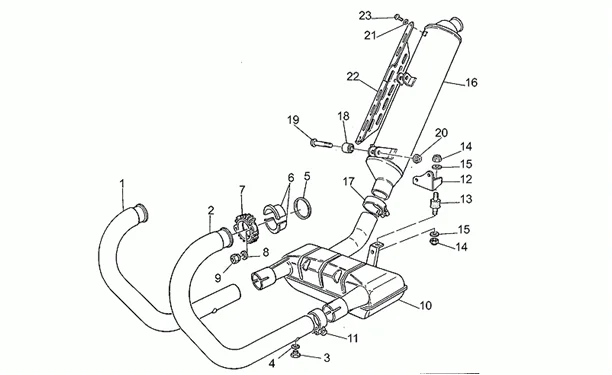

Chassis : 33.31 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/511/Quota_1000_1992-1997_33.31.PNG)
1 |
GU30120930 - COLLECTEUR ECHAPP.D More informationQuantity required : 1 |
||||||
|
2 |
GU30120931 - COLLECTEUR ECHAPP.G More informationQuantity required : 1 |
||||||
|
3 |
GU98110007 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.JPG)
4 |
GU30109330 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
5 |
EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90718370- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
8 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
|
9 |
GU92750085 - ECROU More informationQuantity required : 4 |
||||||
|
10 |
GU30123930 - CHAMBRE DE DETENTE More informationQuantity required : 1 |
||||||
|
11 |
GU30123400 - COLLIER More informationQuantity required : 2 |
||||||
|
12 |
GU30123830 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
13 |
GU93212520 - SILENT BLOCK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/8/img/132538.jpg)
14 |
GU92660208 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/1/6/img/132716.jpg)
15 |
GU95100223 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
GU30123030 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
17 |
GU30126930 - COLLIER More informationQuantity required : 1 |
||||||
|
18 |
GU93202208 - SILENT BLOCK More informationQuantity required : 2 |
||||||
|
19 |
GU98230840 - VIS More informationQuantity required : 1 |
||||||
|
20 |
GU92660008 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
21 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 3 |
||||||
|
22 |
GU30121930 - PROTECT.SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.JPG)
23 |
AP8150340 - VIS More informationQuantity required : 3 |
||||||
|
23 |
AP8150340 - VIS More informationQuantity required : 3 |
