Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 E6-C 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

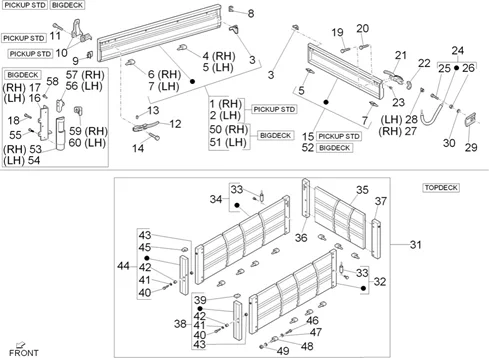

Châssis - parties plastiques - carrosseries : 02.21 RIDELLES DU PLATEAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_02.21.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/9/9/img/113299.jpg)
3 |
6631187Z01000 - CROCHET More informationQuantity required : 10 |
||||||
4 |
6507187Z01000 - CHARNIERE More informationQuantity required : 3 |
||||||
|
5 |
264753 - CHARNIERE More informationQuantity required : 3 |
||||||
|
5 |
6507387Z01000 - CHARNIERE More informationQuantity required : 5 |
||||||
|
6 |
6507287Z01000 - CHARNIERE More informationQuantity required : 1 |
||||||
|
7 |
6507487Z01000 - CHARNIERE More informationQuantity required : 2 |
||||||
|
8 |
6614887Z01000 - PROTECTION More informationQuantity required : 2 |
||||||
|
9 |
565380 - TAMPON More informationQuantity required : 2 |
||||||
|
10 |
6615187Z01000 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/7/img/110387.jpg)
11 |
D9166160820 - BOULON More informationQuantity required : 4 |
||||||
|
12 |
6610187Z01000 - SERRURE More informationQuantity required : 2 |
||||||
|
13 |
6614687Z01000 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/8/img/109868.JPG)
14 |
9162140610000 - BOULON More informationQuantity required : 2 |
||||||
|
16 |
264045 - PLAQUE More informationQuantity required : 1 |
||||||
|
17 |
264046 - PLAQUE More informationQuantity required : 1 |
||||||
|
18 |
D9165160820 - BOULON More informationQuantity required : 4 |
||||||
|
19 |
9165140610000 - BOULON More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
20 |
CM287314 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/7/6/img/116776.jpg)
21 |
6620187Z01000 - SERRURE More informationQuantity required : 2 |
||||||
|
22 |
6614787Z01000 - PANNEAU INS. More informationQuantity required : 2 |
||||||
|
23 |
9004871154000 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/8/3/img/114983.jpg)
24 |
6628087Z01000 - CHAINE POMPE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/1/4/img/111914.jpg)
25 |
9004105170000 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/9/7/img/109797.jpg)
26 |
D9411040600 - ECROU More informationQuantity required : 1 |
||||||
|
27 |
6628787Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
28 |
6628887Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/2/7/img/112127.jpg)
29 |
6628987Z01000 - SUPPORT More informationQuantity required : 2 |
||||||
|
30 |
D9461410600 - RONDELLE More informationQuantity required : 2 |
||||||
|
31 |
B025799 - KIT SPONDE ALT More informationQuantity required : 1 |
||||||
|
32 |
B025800 - RIDELLE LATERAL GAU More informationQuantity required : 1 |
||||||
|
33 |
612104 - CATENELLA COMP More informationQuantity required : 2 |
||||||
|
34 |
612079 - RIDELLE DRT ALU More informationQuantity required : 1 |
||||||
|
35 |
612081 - SPONDA POSTERI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/6/4/4/img/120644.jpg)
36 |
SIDEBOARD EDGE - REAR RIGHT "PIAGGIO GENUINE PART" PIAGGIO PORTER -612089- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/1/1/img/120811.jpg)
37 |
SIDEBOARD EDGE - REAR LEFT "PIAGGIO GENUINE PART" PIAGGIO PORTER -612090- More informationQuantity required : 1 |
||||||
|
38 |
SIDEBOARD EDGE - FRONT LEFT "PIAGGIO GENUINE PART" PIAGGIO PORTER -612087- More informationQuantity required : 1 |
||||||
|
39 |
612098 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
41 |
003058 - RONDELLE S00305800 More informationQuantity required : 4 |
||||||
|
42 |
612109 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
43 |
612100 - ECROU More informationQuantity required : 4 |
||||||
|
44 |
SIDEBOARD EDGE - REAR LEFT "PIAGGIO GENUINE PART" PIAGGIO PORTER -612086- More informationQuantity required : 1 |
||||||
|
45 |
612097 - BOUCHON More informationQuantity required : 1 |
||||||
|
46 |
018592 - ECROU More informationQuantity required : 8 |
||||||
|
48 |
264753 - CHARNIERE More informationQuantity required : 4 |
||||||
|
49 |
B023257 - PLAQUE More informationQuantity required : 4 |
||||||
|
50 |
567821 - BORD DROIT More informationQuantity required : 1 |
||||||
|
51 |
567820 - SPONDA SX More informationQuantity required : 1 |
||||||
|
52 |
263195 - PORTILLON COM More informationQuantity required : 1 |
||||||
|
53 |
263547 - COUVERTURE More informationQuantity required : 1 |
||||||
|
54 |
263548 - COUVERTURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/3/img/65433.jpg)
55 |
018508 - VIS More informationQuantity required : 6 |
||||||
|
56 |
263214 - SERRURE More informationQuantity required : 1 |
||||||
|
57 |
263544 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/6/img/65926.jpg)
58 |
216738 - SILENBLOC More informationQuantity required : 4 |
||||||
|
59 |
6633187Z01000 - TAMPON More informationQuantity required : 1 |
||||||
|
60 |
6633287Z01000 - TAMPON More informationQuantity required : 1 |
