Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 E6-C 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

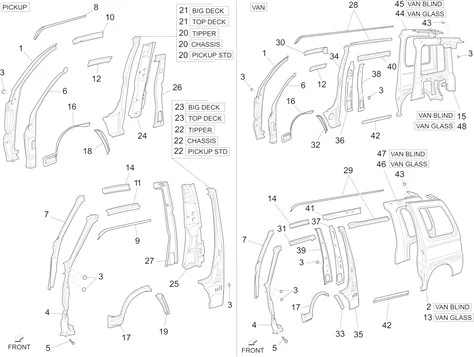

Châssis - parties plastiques - carrosseries : 02.03 CHÂSSIS/CAISSE LATÉRAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_02.03.png)
1 |
6102787Z01000 - MONTANT DRT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/3/9/img/122839.JPG)
2 |
6160287Z01000 - PANNEAU TOLE BLIND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/0/9/img/110209.JPG)
3 |
D9004874004 - BOUCHON More informationQuantity required : 5 |
||||||
|
4 |
6102887Z02000 - MONTANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/8/img/109868.JPG)
5 |
9162140610000 - BOULON More informationQuantity required : 2 |
||||||
|
6 |
6102387Z14000 - MONTANT DRT More informationQuantity required : 1 |
||||||
|
7 |
6102487Z14000 - DOUBLURE More informationQuantity required : 1 |
||||||
|
8 |
6126187Z01000 - GOUTTIERE More informationQuantity required : 1 |
||||||
|
9 |
6126287Z01000 - GOUTTIERE More informationQuantity required : 1 |
||||||
|
10 |
6121187Z02000 - LISTEL More informationQuantity required : 1 |
||||||
|
11 |
6121287Z02000 - LISTEL More informationQuantity required : 1 |
||||||
|
12 |
6123187Z04000 - LISTEL More informationQuantity required : 1 |
||||||
|
14 |
6123287Z03000 - LISTEL More informationQuantity required : 1 |
||||||
|
15 |
6170387Z01000 - PANNEAU More informationQuantity required : 1 |
||||||
|
16 |
493801 - PANNEAU More informationQuantity required : 1 |
||||||
|
17 |
D6142287Z0145 - PANNEAU More informationQuantity required : 1 |
||||||
|
18 |
6142587Z01000 - PANNEAU More informationQuantity required : 1 |
||||||
|
19 |
6142687Z01000 - PANNEAU More informationQuantity required : 1 |
||||||
|
20 |
6130187Z01000 - MONTANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/6/5/img/122265.jpg)
21 |
2632315 - PROTECTION More informationQuantity required : 1 |
||||||
|
22 |
6130287Z01000 - MONTANT More informationQuantity required : 1 |
||||||
|
23 |
2632325 - PROTECTION More informationQuantity required : 1 |
||||||
|
24 |
6419287Z01000 - PROTECTION More informationQuantity required : 1 |
||||||
|
25 |
6419187Z01000 - PROTECTION More informationQuantity required : 1 |
||||||
|
26 |
6413587Z01000 - MONTANT More informationQuantity required : 1 |
||||||
|
27 |
6413687Z01000 - MONTANT More informationQuantity required : 1 |
||||||
|
28 |
6120387Z02000 - LISTEL More informationQuantity required : 1 |
||||||
|
29 |
6120487Z02000 - LISTEL More informationQuantity required : 1 |
||||||
|
30 |
6120187Z02000 - LISTEL More informationQuantity required : 1 |
||||||
|
31 |
6120287Z02000 - LISTEL More informationQuantity required : 1 |
||||||
|
32 |
6142587Z02000 - PANNEAU More informationQuantity required : 1 |
||||||
|
33 |
6142687Z02000 - PANNEAU More informationQuantity required : 1 |
||||||
|
36 |
6103787Z01000 - PROTECTION More informationQuantity required : 1 |
||||||
|
37 |
6103887Z01000 - PROTECTION More informationQuantity required : 1 |
||||||
|
38 |
6134387Z01000 - MONTANT More informationQuantity required : 1 |
||||||
|
39 |
6134487Z01000 - MONTANT More informationQuantity required : 1 |
||||||
|
40 |
6123387Z02000 - LISTEL More informationQuantity required : 1 |
||||||
|
41 |
6123487Z02000 - LISTEL More informationQuantity required : 1 |
||||||
|
42 |
6141187Z01000 - PANNEAU More informationQuantity required : 1 |
||||||
|
43 |
9004874025000 - BOUCHON More informationQuantity required : 1 |
||||||
|
45 |
6160187Z01000 - PANNEAU ARD More informationQuantity required : 1 |
||||||
|
47 |
6170487Z01000 - PANNEAU More informationQuantity required : 1 |
