Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 E6-C 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

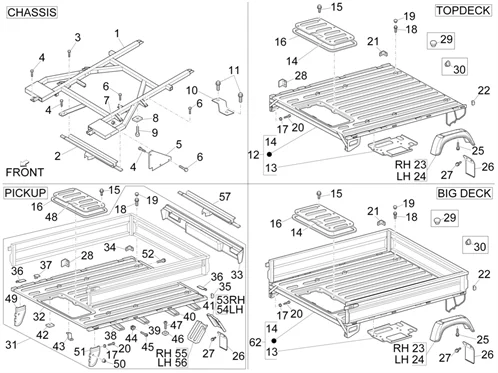

Châssis - parties plastiques - carrosseries : 02.18 BENNE OUVERTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_02.18.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
3 |
CM287314 - BOULON More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/2/1/img/110121.jpg)
4 |
D9165140820 - BOULON More informationQuantity required : 8 |
|||||||||
5 |
5121387Z01000 - PLAQUE More informationQuantity required : 2 |
|||||||||
|
6 |
9165141025000 - BOULON More informationQuantity required : 12 |
|||||||||
|
7 |
9418041000000 - ECROU More informationQuantity required : 4 |
|||||||||
|
8 |
9004541144000 - TAMPON More informationQuantity required : 2 |
|||||||||
|
9 |
9352014014000 - VIS More informationQuantity required : 2 |
|||||||||
|
10 |
B004423 - EQUERRE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/0/2/img/110102.jpg)
11 |
D9165141028 - BOULON More informationQuantity required : 4 |
|||||||||
|
12 |
B0071465 - PLATEAU DE CHARGEMENT More informationQuantity required : 1 |
|||||||||
|
13 |
2614385 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
14 |
2632075 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
15 |
9004119302000 - BOULON More informationQuantity required : 6 |
|||||||||
|
16 |
5516687Z02000 - JOINT More informationQuantity required : 1 |
|||||||||
|
17 |
D6644387Z01 - JOINT More informationQuantity required : 4 |
|||||||||
|
18 |
D9165141028 - BOULON More informationQuantity required : 8 |
|||||||||
|
19 |
B004631 - BOUCHON More informationQuantity required : 8 |
|||||||||
|
20 |
D9165140820 - BOULON More informationQuantity required : 11 |
|||||||||
|
21 |
6633187Z01000 - TAMPON More informationQuantity required : 1 |
|||||||||
|
22 |
6633287Z01000 - TAMPON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/0/9/8/img/116098.jpg)
23 |
645569 - GARDE-BOUE More informationQuantity required : 1 |
|||||||||
|
24 |
645568 - XARDE-BOUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/5/9/img/110159.jpg)
25 |
9004119537000 - BOULON More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/6/2/img/114062.jpg)
26 |
MUD FLAP - REAR "PIAGGIO GENUINE PART" PORTER -B007640- More informationQuantity required : 2 |
|||||||||
|
27 |
9163140612000 - BOULON More informationQuantity required : 4 |
|||||||||
|
28 |
565380 - TAMPON More informationQuantity required : 2 |
|||||||||
|
29 |
212400 - BOUCHON More informationQuantity required : 6 |
|||||||||
|
30 |
190517 - BOUCHON More informationQuantity required : 4 |
|||||||||
|
31 |
6501187Z07000 - PORT OUVERT. More informationQuantity required : 1 |
|||||||||
|
32 |
D6531187Z035 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
33 |
493717 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
34 |
6633187Z01000 - TAMPON More informationQuantity required : 1 |
|||||||||
|
35 |
6633287Z01000 - TAMPON More informationQuantity required : 1 |
|||||||||
|
36 |
6611287Z01000 - CHARNIERE More informationQuantity required : 11 |
|||||||||
|
37 |
6631387Z01000 - CROCHET More informationQuantity required : 6 |
|||||||||
|
38 |
6510287Z03000 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
39 |
6510487Z02000 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
40 |
6510587Z01000 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
41 |
6510687Z02000 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
42 |
9004876010000 - ECROU More informationQuantity required : 5 |
|||||||||
|
43 |
5826687Z01000 - SUPPORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
44 |
D9004189019 - PASSE-CABLE More informationQuantity required : 2 |
|||||||||
|
45 |
9358016012000 - VIS More informationQuantity required : 2 |
|||||||||
|
46 |
9004541144000 - TAMPON More informationQuantity required : 2 |
|||||||||
|
47 |
9352014014000 - VIS More informationQuantity required : 2 |
|||||||||
|
48 |
6640187Z03000 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
49 |
6531387Z01000 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
50 |
6632187Z01000 - TAMPON More informationQuantity required : 2 |
|||||||||
|
51 |
6531487Z01000 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
52 |
9338516014000 - VIS More informationQuantity required : 1 |
|||||||||
|
53 |
6530587Z01000 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
54 |
6530687Z01000 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
55 |
6531787Z01000 - PANNEAU GARDEBOUE ARR.GAU. More informationQuantity required : 1 |
|||||||||
|
56 |
6531887Z01000 - PANNEAU GARDEBOUE ARR.DRT. More informationQuantity required : 1 |
|||||||||
|
62 |
B0071455 - PLATEAU DE CHARGEMENT More informationQuantity required : 1 |
|||||||||
