Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 E6-C 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

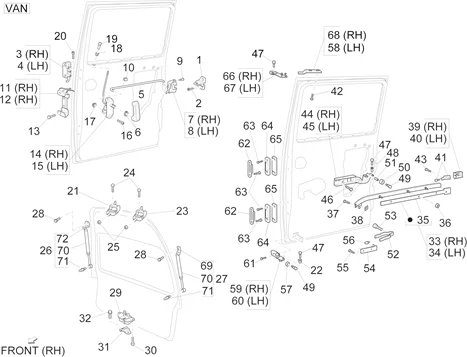

Châssis - parties plastiques - carrosseries : 02.10 COMPOSANTS DES PORTES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_02.10.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/7/3/img/118873.jpg)
1 |
B005018 - PLAQUE More informationQuantity required : 2 |
||||||
2 |
9004151029000 - VIS More informationQuantity required : 4 |
||||||
|
3 |
RIGHT DOOR HANDLE (OUTSIDE) "PIAGGIO GENUINE PART" PORTER VAN -B005335- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/3/8/img/119238.jpg)
4 |
LEFT DOOR HANDLE (OUTSIDE) "PIAGGIO GENUINE PART" PORTER VAN -B005336- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/4/9/img/112049.JPG)
5 |
6971387Z01000 - TIRANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/1/5/img/113315.JPG)
6 |
6927287Z01030 - POIGNEE More informationQuantity required : 2 |
||||||
|
7 |
B005014 - SERRURE PORTE DR. More informationQuantity required : 1 |
||||||
|
8 |
B005015 - SERRURE PORTE GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/8/0/img/109980.JPG)
9 |
D9004159188 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/4/3/img/111143.jpg)
10 |
6975987Z01000 - PANNEAU INS. More informationQuantity required : 2 |
||||||
|
11 |
6973087Z01000 - SERRURE More informationQuantity required : 1 |
||||||
|
12 |
6974087Z01000 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/6/3/img/151263.JPG)
13 |
CM288112 - VIS More informationQuantity required : 4 |
||||||
|
14 |
B005020 - COMMANDE FERM More informationQuantity required : 1 |
||||||
|
15 |
B005021 - COMMANDE FERM More informationQuantity required : 1 |
||||||
|
16 |
D9354016012 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
17 |
D9004189019 - PASSE-CABLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/2/8/img/110428.jpg)
18 |
6974787Z01000 - MANETON More informationQuantity required : 2 |
||||||
|
19 |
D9004480352 - PASSE-CABLE More informationQuantity required : 2 |
||||||
|
20 |
D9338116008 - VIS More informationQuantity required : 4 |
||||||
|
21 |
6880187Z02000 - CHARNIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/9/5/img/110395.jpg)
22 |
D6833287Z01 - PIVOT More informationQuantity required : 2 |
||||||
|
23 |
6880187Z01000 - CHARNIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/5/img/110045.jpg)
24 |
9165140816000 - BOULON More informationQuantity required : 4 |
||||||
|
25 |
261321 - ECROU More informationQuantity required : 4 |
||||||
|
26 |
RIGHT TAIL GATE HYDRAULIC ACTUATOR "PIAGGIO GENUINE PART" PORTER VAN -6895087Z82000- More informationQuantity required : 4 |
||||||
|
27 |
LEFT TAIL GATE HYDRAULIC ACTUATOR "PIAGGIO GENUINE PART" PORTER VAN -6896087Z82000- More informationQuantity required : 4 |
||||||
|
28 |
9161160614000 - BOULON More informationQuantity required : 4 |
||||||
|
29 |
B005016 - SERRURE More informationQuantity required : 1 |
||||||
|
30 |
D9161140612 - BOULON More informationQuantity required : 2 |
||||||
|
31 |
B005017 - PLAQUE SERRURE More informationQuantity required : 2 |
||||||
|
32 |
D9004159295 - VIS More informationQuantity required : 2 |
||||||
|
33 |
6180787Z01000 - LISTEL More informationQuantity required : 1 |
||||||
|
34 |
6180887Z01000 - LISTEL More informationQuantity required : 1 |
||||||
|
35 |
6182787Z01000 - PANNEAU More informationQuantity required : 1 |
||||||
|
36 |
261323 - ECROU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/4/img/109864.jpg)
37 |
9162140614000 - BOULON More informationQuantity required : 2 |
||||||
|
38 |
6837787Z01000 - PLAQUE More informationQuantity required : 2 |
||||||
|
39 |
7565187Z01000 - COUVERCLE More informationQuantity required : 1 |
||||||
|
40 |
7565287Z01000 - COUVERCLE More informationQuantity required : 1 |
||||||
|
41 |
6183987Z01000 - SUPPORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/0/0/img/109900.jpg)
42 |
D9162140816 - BOULON More informationQuantity required : 4 |
||||||
|
43 |
D9161140614 - BOULON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/5/2/8/img/118528.jpg)
44 |
6838087Z01000 - CHARNIERE More informationQuantity required : 1 |
||||||
|
45 |
6839087Z01000 - CHARNIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/1/img/110221.jpg)
46 |
9004119383000 - BOULON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/4/1/img/111041.jpg)
47 |
D9004241105 - AXE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/0/img/110380.jpg)
48 |
6833487Z01000 - PIVOT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/1/0/img/110610.jpg)
49 |
PIN "PIAGGIO GENUINE PART" -9004241106000- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/5/6/5/img/115565.JPG)
50 |
261355 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/5/6/img/109856.jpg)
51 |
9004560155000 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
52 |
6832687Z01000 - RESSORT More informationQuantity required : 2 |
||||||
|
53 |
D9338515010 - VIS More informationQuantity required : 2 |
||||||
|
54 |
6941687Z01000 - PLAQUE More informationQuantity required : 2 |
||||||
|
55 |
D9162160620 - BOULON More informationQuantity required : 4 |
||||||
|
56 |
6941987Z01000 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/1/5/6/img/114156.JPG)
57 |
B005029 - ROULEMENT More informationQuantity required : 2 |
||||||
|
58 |
6851787Z01000 - PLAQUE More informationQuantity required : 1 |
||||||
|
59 |
6803787Z01000 - BRAS More informationQuantity required : 1 |
||||||
|
60 |
6803887Z01000 - BRAS ACCELERA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/7/img/110387.jpg)
61 |
D9166160820 - BOULON More informationQuantity required : 4 |
||||||
|
62 |
6941487Z01000 - ARRET More informationQuantity required : 4 |
||||||
|
63 |
CM288916 - VIS More informationQuantity required : 16 |
||||||
|
64 |
6941387Z01000 - ARRET More informationQuantity required : 4 |
||||||
|
65 |
6941887Z01000 - EPAISSEUR More informationQuantity required : 4 |
||||||
|
66 |
6803187Z01000 - BRAS ACCELERA More informationQuantity required : 1 |
||||||
|
67 |
6803287Z01000 - BRAS More informationQuantity required : 1 |
||||||
|
68 |
6831787Z01000 - PLAQUE More informationQuantity required : 1 |
||||||
|
69 |
LEFT TAIL GATE HYDRAULIC ACTUATOR "PIAGGIO GENUINE PART" PORTER VAN -6896087Z82000- More informationQuantity required : 1 |
||||||
|
70 |
56605R - RESSORT More informationQuantity required : 2 |
||||||
|
71 |
56607R - PIVOT More informationQuantity required : 2 |
||||||
|
72 |
RIGHT TAIL GATE HYDRAULIC ACTUATOR "PIAGGIO GENUINE PART" PORTER VAN -6895087Z82000- More informationQuantity required : 1 |
