Vehicle Exploded View - APRILIA PEGASO 650 1992-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

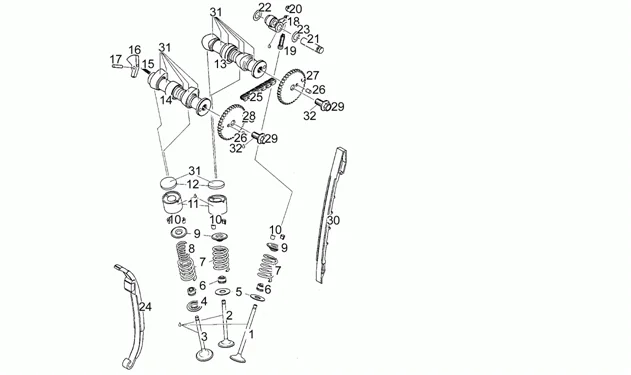

Moteur : 29 SOUPAPES T
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/303/Pegaso_650_1992-1996_29.PNG)
1 |
AP0253615 - SOUPAPE D'ADMISSION More informationQuantity required : 1 |
||||||
|
2 |
AP0253610 - SOUPAPE D'ADMISSION More informationQuantity required : 2 |
||||||
|
3 |
AP0253620 - SOUPAPE D'ECHAPPEMENT More informationQuantity required : 2 |
||||||
|
5 |
AP0227982 - RACLEUR More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/0/9/img/43509.jpg)
6 |
AP0230510 - JOINT SPI GUIDE-SOUPAPE More informationQuantity required : 5 |
||||||
|
7 |
AP0239150 - RESSORT SOUPAPE EXT. More informationQuantity required : 5 |
||||||
|
8 |
AP0838140 - RESSORT SOUPAPE INT. More informationQuantity required : 2 |
||||||
|
9 |
AP0253571 - PIASTRA MOLLA VALVOLA More informationQuantity required : 5 |
||||||
|
10 |
AP0253640 - DEMI-CLAVETTE SOUPAPE More informationQuantity required : 10 |
||||||
|
11 |
AP0253540 - GODET SOUPAPE More informationQuantity required : 4 |
||||||
|
12 |
AP0253562 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253563 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253564 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253565 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253566 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/8/8/img/43888.jpg)
12 |
AP0253567 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253568 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253569 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253910 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253561 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253560 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253559 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253550 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253551 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253552 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253553 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253554 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253555 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253556 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
AP0253557 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/7/9/img/43879.JPG)
12 |
AP0253558 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
14 |
AP0237105 - ARBRE A CAME ECHAP. More informationQuantity required : 1 |
||||||
|
15 |
2R000273 - RESSORT More informationQuantity required : 1 |
||||||
|
16 |
AP0231020 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
17 |
AP0232910 - GOUPILLE More informationQuantity required : 1 |
||||||
|
18 |
AP0253605 - CULBUTEUR D'ADMISSION More informationQuantity required : 1 |
||||||
|
19 |
AP0240205 - VIS More informationQuantity required : 1 |
||||||
|
20 |
AP0242591 - ECROU More informationQuantity required : 1 |
||||||
|
21 |
AP0253530 - CULBUTEUR TIGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/4/7/4/img/43474.jpg)
22 |
AP0227451 - RACLEUR More informationQuantity required : 1 |
||||||
|
24 |
AP0236115 - PATIN GUIDE-CHA?NE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/2/6/1/img/44261.jpg)
25 |
TIMING CHAIN "PIAGGIO GENUINE PART" APRILIA 650 PEGASO -AP0297760- More informationQuantity required : 1 |
||||||
|
26 |
AP0232210 - PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/9/1/2/img/43912.jpg)
27 |
INTAKE TIMING SYSTEM GEAR "PIAGGIO GENUINE PART" APRILIA 650 PEGASO -AP0253945- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/9/1/3/img/43913.jpg)
28 |
EXHAUST TIMING SYSTEM GEAR "PIAGGIO GENUINE PART" APRILIA 650 PEGASO -AP0253947- More informationQuantity required : 1 |
||||||
|
30 |
AP0236126 - PATIN GUIDE-CHA?NE D More informationQuantity required : 1 |
||||||
|
31 |
AP0297433 - MOLYKOTE More informationQuantity required : 1 |
||||||
|
32 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
