Vehicle Exploded View - APRILIA PEGASO 650 1992-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

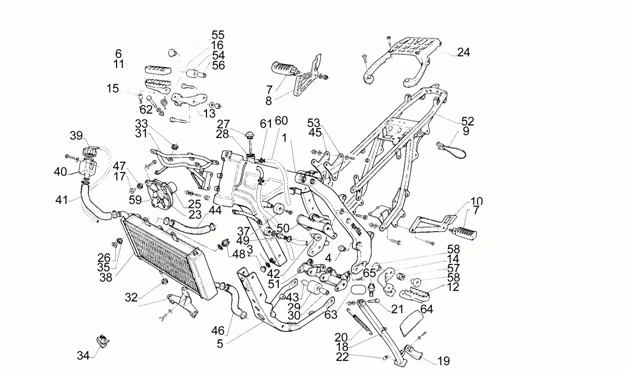

Chassis : 11 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/303/Pegaso_650_1992-1996_11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/0/img/97070.jpg)
3 |
OIL TANK WASHER (OR EXHAUST) (8X16X1,5MM) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, FALCO, TUONO, CAPONORD, 650 PEGASO, 450-550 RXV, SXV -AP8121862- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/3/0/img/46730.jpg)
4 |
AP8121150 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/7/img/71417.JPG)
6 |
AP8120831 - C/C REPOSE PIED PILOTE More informationQuantity required : 2 |
||||||
8 |
AP8132588 - SUPPORT REP/PIED AR.DR. More informationQuantity required : 1 |
||||||
|
8 |
AP8135824 - SUPPORT DR PASSAGER More informationQuantity required : 1 |
||||||
|
9 |
AP8102931 - CABLE CASQUE=8201298 More informationQuantity required : 1 |
||||||
|
10 |
AP8135825 - SUPPORT REOSE PIED More informationQuantity required : 1 |
||||||
|
11 |
AP8135790 - ENSEMBLE PILOTE DROIT More informationQuantity required : 1 |
||||||
|
12 |
AP8135487 - REP/PIED AV G. 6.5 More informationQuantity required : 1 |
||||||
|
14 |
AP8135474 - SUPPORT REP/PIED PILOTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/8/9/img/56989.jpg)
15 |
AP8221007 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
16 |
AP8121928 - RESSORT RETOUR REPOSE-PIEDS; More informationQuantity required : 2 |
||||||
|
16 |
AP8101317 - RES.RAP. PLAN. PIL. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
17 |
AP8121725 - "DOUILLE EN ""T""" More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/9/img/46919.jpg)
20 |
AP8121695 - RESS.HEL.CYL.TRACT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/0/img/46920.jpg)
20 |
AP8121696 - RESS.HEL.CYL.TRACT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
20 |
AP8221197 - RESSORT RAPPEL BEQ. More informationQuantity required : 1 |
||||||
|
21 |
AP8105103 - VIS FIX. BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
22 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/0/img/56990.jpg)
22 |
AP8221017 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
25 |
AP8124335 - VENTILATEUR More informationQuantity required : 1 |
||||||
|
26 |
AP8121679 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
|
27 |
AP8102393 - BOUCHON RES.HUILE+TIGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/8/img/46598.jpg)
28 |
AP8120280 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
29 |
AP8101704 - ROULETTE TENDEUR DE CHA?NE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/1/6/img/46616.jpg)
30 |
AP8120568 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/7/img/71407.JPG)
32 |
AP8120594 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
33 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
34 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
35 |
AP8101372 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
36 |
AP8134924 - SUP INF RADIA=8134239 More informationQuantity required : 1 |
||||||
|
37 |
AP8201124 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/7/img/55357.jpg)
39 |
COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463- More informationQuantity required : 1 |
||||||
|
40 |
AP8131740 - VASE EXPANSION More informationQuantity required : 1 |
||||||
|
41 |
AP8120833 - DURITE ENTREE=8120731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/3/2/img/46732.jpg)
42 |
SWING ARM PIV. BUSH "PIAGGIO GENUINE PART" APRILIA 125 RS, AF1, TUONO, PEGASO -AP8121156- More informationQuantity required : 1 |
||||||
|
43 |
AP8121805 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
46 |
AP8120673 - TUYAU RETOUR EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
47 |
AP8120223 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/7/5/img/45875.jpg)
48 |
SWITCH /TEMPERATURE SENSOR "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1992>2000, 125 LEONARDO 1996>2004 -AP8112677- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/5/img/46725.jpg)
54 |
AP8121092 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/3/img/45093.jpg)
56 |
AP8101108 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
60 |
2R000278 - TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.JPG)
61 |
AP8101573 - COLLIER More informationQuantity required : 6 |
||||||
|
62 |
AP8121717 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/7/img/69687.jpg)
65 |
STAND SWITCH "PIAGGIO GENUINE PART" APRILIA ATALANTIC 125-300-400, SCARABEO 400-500, CAPONORD, RS 125, RS 50, RSV 1000, TUONO 1000/MOTO GUZZI BREVA, NEVADA -00N05700601- More informationQuantity required : 1 |
