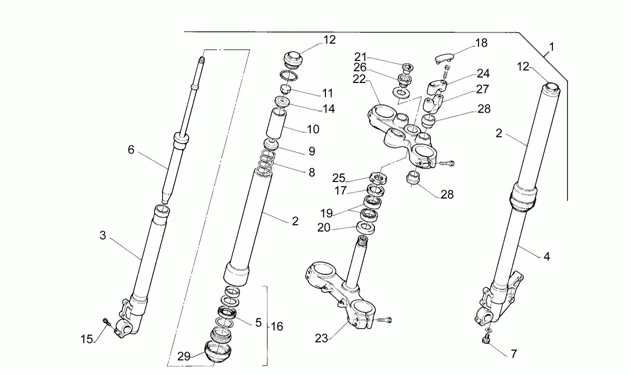

Chassis : 2 FOURCHE AV. N/P
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/303/Pegaso_650_1992-1996_2.PNG)
1 |
Fourche complete 650 peg |
||||||
|
2 |
Fourreau fourche chrome |
||||||
|
3 |
TUBE DE FOURCHE DR. |
||||||
|
4 |
TUBE DE FOURCHE G. |
||||||
|
5 |
JOINT 41X53X10*8123 (PL) |
||||||
|
6 |
CYLINDRE POMPE CPL.TUBE. |
||||||
|
7 |
BOUCHON E.I. |
||||||
|
8 |
RESSORT |
||||||
|
9 |
ENTRETOISE |
||||||
|
10 |
AP8123228 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
11 |
ECROU |
||||||
|
12 |
BOUCHON FOURCHE |
||||||
|
14 |
RONDELLE |
||||||
|
15 |
Vis 6x20 |
||||||
|
16 |
KIT SPY DE FOURCHE (PL) |
||||||
|
17 |
Coiffe cache-poussière |
||||||
|
18 |
AP8101513 - BOUCHON CACHE GUIDON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
19 |
STEERING COLUMN BEARING (LOWER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110024 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/1/img/71231.jpg)
20 |
GASKET RING FOR STEERING COLUMN "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, RS, TUONO, 750 DORSODURO, 600-650 PEGASO -AP8104597 More informationQuantity required : 1 |
||||||
|
21 |
AP8120771 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
22 |
AP8123248 - TE SUPERIEUR DE FOURCHE More informationQuantity required : 1 |
||||||
|
23 |
TE INFERIEUR DE FOURCHE |
||||||
|
24 |
Pontet de guidon |
||||||
|
25 |
AP8123242 - ECROU More informationQuantity required : 1 |
||||||
|
26 |
AP8123243 - BOUCHON TUBE More informationQuantity required : 1 |
||||||
|
27 |
Plongeur guidon |
||||||
|
28 |
AP8123252 - SILENT-BLOC More informationQuantity required : 4 |
||||||
|
29 |
AP8123259 - CACHE POUSSIERE EXT. More informationQuantity required : 2 |
||||||
|
29 |
CACHE POUSSIERE FOURCHE |
