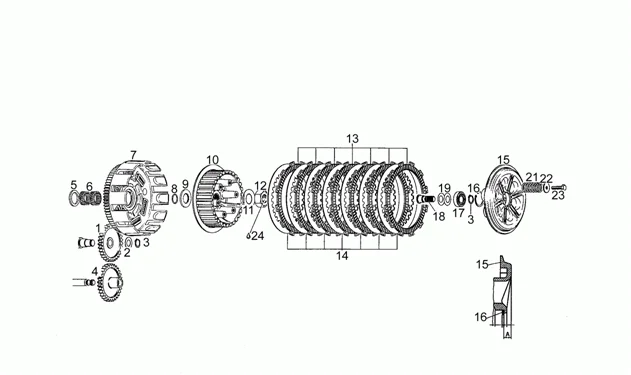

Vehicle Exploded View - APRILIA PEGASO 650 1992-1996

Moteur : 23 EMBRAYAGE N>S

Embrayage N>S

Search

1

	P2R reference	43592
	Maker reference	AP0235272

AP0235272 - PIGNON INTERMEDIAIRE

More information

Quantity required : 1

2

	P2R reference
	Maker reference	AP0227400

RONDELLE

3

	P2R reference
	Maker reference	AP0945650

Bague seeger

4

	P2R reference
	Maker reference	AP0235277

PIGNON 31 DENTS

5

	P2R reference
	Maker reference	AP0227607

RONDELLE

6

	P2R reference	44589
	Maker reference	AP0932930

AP0932930 - CAGE A ROULEAUX

More information

Quantity required : 2

7

	P2R reference
	Maker reference	AP0294400

CLOCHE EMBRAYAGE

8

	P2R reference	43505
	Maker reference	AP0230400

AP0230400 - JOINT TORIQUE

More information

Quantity required : 1

8

	P2R reference	43840
	Maker reference	AP0250890

AP0250890 - JOINT TORIQUE

More information

Quantity required : 1

9

	P2R reference	43770
	Maker reference	AP0244950

AP0244950 - RACLEUR

More information

Quantity required : 1

10

	P2R reference	43993
	Maker reference	AP0259115

AP0259115 - MOYEU EMBRAYAGE

More information

Quantity required : 1

11

	P2R reference
	Maker reference	AP0245325

Rondelle

12

	P2R reference	43757
	Maker reference	AP0242607

AP0242607 - ECROU

More information

Quantity required : 1

13

	P2R reference	44000
	Maker reference	AP0259210

AP0259210 - DISQUE EMBR. GARNI

More information

Quantity required : 7

14

	P2R reference
	Maker reference	AP0259260

Disque embr. acier

15

	P2R reference	43994
	Maker reference	AP0259122

AP0259122 - PLATEAU A RESSORTS

More information

Quantity required : 1

16

	P2R reference
	Maker reference	AP0245420

SEEGER

17

	P2R reference	43525
	Maker reference	AP0232262

AP0232262 - ROULEMENT

More information

Quantity required : 1

18

	P2R reference	43999
	Maker reference	AP0259203

AP0259203 - ALBERO A CREMAGLIERA

More information

Quantity required : 1

19

	P2R reference	43650
	Maker reference	AP0239060

AP0239060 - RESSORT A GODET

More information

Quantity required : 2

21

	P2R reference	43657
	Maker reference	AP0239162

AP0239162 - RESSORT EMBRAYAGE

More information

Quantity required : 6

22

	P2R reference	43766
	Maker reference	AP0244020

AP0244020 - RONDELLE

More information

Quantity required : 6

23

	P2R reference	43687
	Maker reference	AP0240036

AP0240036 - VIS

More information

Quantity required : 6

24

	P2R reference	44557
	Maker reference	AP0899785

AP0899785 - LOCTITE VIOLET

More information

Quantity required : 1
