Vehicle Exploded View - APRILIA PEGASO 650 1992-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

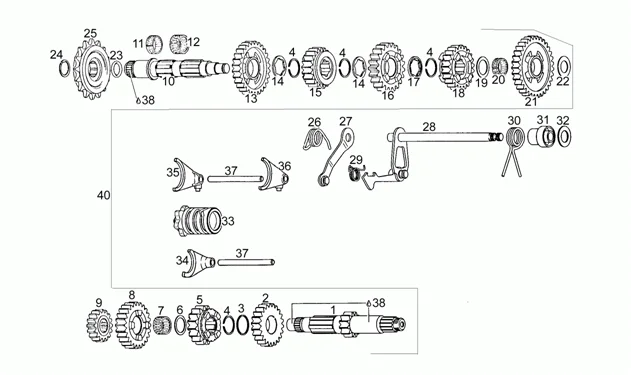

Moteur : 17 BOÎTE DE VITESSES T
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/303/Pegaso_650_1992-1996_17.PNG)
1 |
AP0220232 - ARBRE PRIMAIRE More informationQuantity required : 1 |
||||||
|
2 |
AP0234717 - ENGRANAGE 22 D. More informationQuantity required : 1 |
||||||
|
3 |
AP0227825 - RACLEUR More informationQuantity required : 1 |
||||||
|
4 |
AP0445300 - BAGUE SEEGER More informationQuantity required : 4 |
||||||
|
5 |
AP0634330 - ENGR. 3E SUR PRIM. More informationQuantity required : 1 |
||||||
|
6 |
AP0227445 - RACLEUR More informationQuantity required : 1 |
||||||
|
7 |
AP0232805 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
8 |
AP0234720 - ENGR. 5E SUR PRIM. More informationQuantity required : 1 |
||||||
|
9 |
AP0234671 - ENGRANAGE 16 D. More informationQuantity required : 1 |
||||||
|
10 |
AP0220225 - ARBRE SECONDAIRE More informationQuantity required : 1 |
||||||
|
11 |
AP0232520 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
12 |
AP0232530 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
14 |
AP0627051 - RACLEUR More informationQuantity required : 2 |
||||||
|
15 |
AP0634341 - INGRANAGGIO Z= More informationQuantity required : 1 |
||||||
|
17 |
AP0627061 - BAGUE More informationQuantity required : 1 |
||||||
|
18 |
AP0634351 - ENGRANAGE 23D. More informationQuantity required : 1 |
||||||
|
19 |
AP0244100 - RACLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/3/8/img/43538.jpg)
20 |
ROLLER BEARING FOR CLUTCH "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO -AP0259053- More informationQuantity required : 1 |
||||||
|
21 |
AP0634291 - INGRANAGGIO 1A SU SEC. Z=33 More informationQuantity required : 1 |
||||||
|
22 |
AP0227430 - RACLEUR More informationQuantity required : 1 |
||||||
|
23 |
AP0430460 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/7/8/img/43778.jpg)
24 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO APRILIA 50-125 CC -AP0245650- More informationQuantity required : 1 |
||||||
|
25 |
AP0236262 - PIGNON Z=16 More informationQuantity required : 1 |
||||||
|
26 |
AP0239095 - RESSORT INDEX More informationQuantity required : 1 |
||||||
|
27 |
AP0248346 - LEVIER INDEX CPL More informationQuantity required : 1 |
||||||
|
28 |
AP0237929 - ARBRE CHANG.+HARP. CPL More informationQuantity required : 1 |
||||||
|
29 |
AP0239075 - RESSORT More informationQuantity required : 1 |
||||||
|
30 |
AP0239084 - RESSORT More informationQuantity required : 1 |
||||||
|
31 |
AP0247900 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
32 |
AP0227430 - RACLEUR More informationQuantity required : 1 |
||||||
|
33 |
AP0258275 - DESMODROMIQUE More informationQuantity required : 1 |
||||||
|
34 |
AP0258038 - FORCHETTA 4-5 V.TA' More informationQuantity required : 1 |
||||||
|
35 |
AP0258028 - FOURCHETTE 2 V More informationQuantity required : 1 |
||||||
|
36 |
AP0258018 - FORCHETTA 1-3A VEL. More informationQuantity required : 1 |
||||||
|
37 |
AP0258782 - AXE DE FOURCHETTE More informationQuantity required : 2 |
||||||
|
38 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
||||||
|
40 |
AP0281192 - CHANGEM. CPL 5 VIT. More informationQuantity required : 1 |
