Vehicle Exploded View - APRILIA PEGASO 650 1992-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

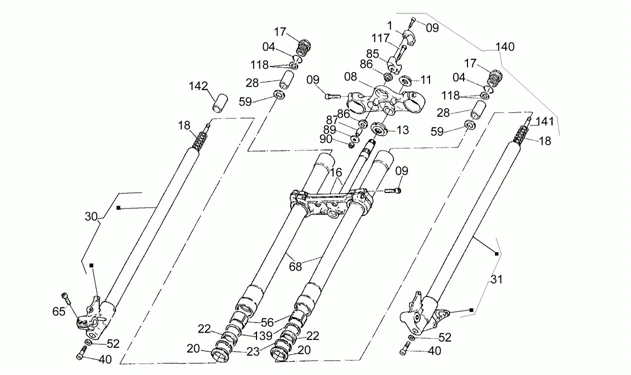

Chassis : 3 FOURCHE AV. R/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/303/Pegaso_650_1992-1996_3.PNG)
1 |
AP8123185 - PONTET GUIDON More informationQuantity required : 2 |
||||||
|
1 |
AP8123604 - CAVALIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/1/3/img/71513.jpg)
4 |
AP8123346 - JOINT TORIQUE; More informationQuantity required : 2 |
||||||
|
4 |
Joint torique |
||||||
|
8 |
TE SUP =8123412 |
||||||
|
8 |
AP8123723 - PLAQUE SUP. FOURCHE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
9 |
600123 - BOULON M8X30 More informationQuantity required : 8 |
||||||
|
11 |
AP8123243 - BOUCHON TUBE More informationQuantity required : 1 |
||||||
|
13 |
AP8203588 - BAGUE INFERIEUR FOURCHE More informationQuantity required : 1 |
||||||
|
16 |
TE INFERIEUR |
||||||
|
16 |
AP8123611 - BASE AVEC TUBE More informationQuantity required : 1 |
||||||
|
17 |
AP8123348 - GR. BOUCHON CPL.; More informationQuantity required : 2 |
||||||
|
18 |
RESSORT |
||||||
|
18 |
Ressort |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/6/img/67386.jpg)
20 |
FORK DUST COVER - "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS/MOTO-GUZZI V7, BREVA NEVADA -599502- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/5/img/67385.jpg)
22 |
FORK OIL SEAL GASKET- MARZOCCHI (D40) "PIAGGIO GENUINE PART" 500 X9/APRILIA 50-125-250 RS, 500 ATLANTIC, 650 PEGASO/GILERA 500 NEXUS/MOTO-GUZZI 750 BREVA, NEVADA, V7 -599501- More informationQuantity required : 2 |
||||||
|
23 |
AP8123199 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
28 |
TUBE DE REGLA. CHARGE |
||||||
|
28 |
Tuyau précharge |
||||||
|
30 |
TUBE FOURCHE D. 650 95 |
||||||
|
30 |
FOURREAU DROIT+ TUBE |
||||||
|
31 |
TUBE FOURCHE G 650 95 |
||||||
|
31 |
FOURREAU GAUCHE+ TUBE |
||||||
|
40 |
AP8123216 - VIS More informationQuantity required : 2 |
||||||
|
52 |
Joint; |
||||||
|
56 |
Douille de coulissement |
||||||
|
59 |
AP8123357 - BAGUE; More informationQuantity required : 2 |
||||||
|
65 |
AP8123920 - VIS; More informationQuantity required : 1 |
||||||
|
68 |
FOURREAU D.40 GRIS |
||||||
|
68 |
FOURREAU D.40 NOIR |
||||||
|
85 |
GU03530547 - CAVALIER INF. More informationQuantity required : 2 |
||||||
|
85 |
AP8123605 - CAVALIER INF. More informationQuantity required : 2 |
||||||
|
86 |
AP8103504 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
87 |
AP8123510 - TUYAU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.jpg)
89 |
AP8123721 - RONDELLE More informationQuantity required : 2 |
||||||
|
90 |
AP8123512 - ECROU More informationQuantity required : 2 |
||||||
|
117 |
AP8123513 - VIS More informationQuantity required : 2 |
||||||
|
118 |
AP8123441 - DEMI-CLAVETTES; More informationQuantity required : 4 |
||||||
|
139 |
Rondelle bouche guide; |
||||||
|
140 |
Fourche complete 650 peg |
||||||
|
140 |
FOURCHE D.40 |
||||||
|
141 |
|
||||||
|
142 |
Tuyau guide ressort |
