Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic IE 750 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

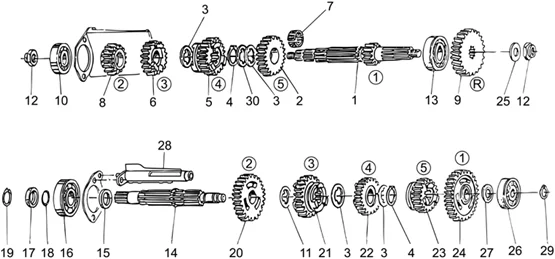

Moteur : 34.15 BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/502/Nevada_Classic_IE_750_2004-2008_34.15.PNG)
1 |
GU23210570 - ARBRE PRIMAIRE Z=11 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/4/6/2/img/131462.jpg)
1 |
GU32210510 - VIS More informationQuantity required : 1 |
||||||
|
2 |
GU32212010 - ENGRENAGE 5A AP Z=20 More informationQuantity required : 1 |
||||||
|
2 |
GU32212011 - ENGRENAGE 50 AP More informationQuantity required : 1 |
||||||
|
3 |
GU19215460 - RONDELLE EVENTAIL More informationQuantity required : 3 |
||||||
|
4 |
GU90271124 - BAGUE SEEGER More informationQuantity required : 2 |
||||||
|
5 |
GU32211810 - ENGRENAGE 4A AP Z=18 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/4/6/4/img/131464.jpg)
6 |
GU32211410 - ENGRENAGE 3A AP Z=18 More informationQuantity required : 1 |
||||||
|
7 |
GU92251028 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
8 |
GU23211372 - ENGRENAGE 2A AP Z=14 More informationQuantity required : 1 |
||||||
|
9 |
GU32211110 - PIGNON INTERMED.AP Z=21 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/8/img/132408.jpg)
10 |
GEARBOX BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI (OLD RANGE) 17X40X17,5 -GU92218417- More informationQuantity required : 1 |
||||||
|
11 |
GU19214660 - RONDELLE D'APPUI More informationQuantity required : 2 |
||||||
|
12 |
GU10054100 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
GU92230320 - ROULEMENT AP 20X37X17 More informationQuantity required : 1 |
||||||
|
14 |
GU19213661 - ARBRE SECONDAIRE More informationQuantity required : 1 |
||||||
|
14 |
GU32213610 - VIS More informationQuantity required : 1 |
||||||
|
15 |
GU19212900 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/8/img/132388.jpg)
16 |
BEARING (20X47X14) FOR TIMING SYSTEM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92201220- More informationQuantity required : 1 |
||||||
|
17 |
GU19213720 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/3/img/132223.jpg)
18 |
GASKET RING- BEVEL GEAR (18,77X1,78) "PIAGGIO GENUINE PART" MOTO GUZZI -GU90706188 More informationQuantity required : 1 |
||||||
|
19 |
GU90271121 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
20 |
GU32214510 - ENGRENAGE 2A AS Z=23 More informationQuantity required : 1 |
||||||
|
21 |
GU32214810 - ENGRENAGE 3A AS Z=23 More informationQuantity required : 1 |
||||||
|
22 |
GU32215010 - ENGRENAGE 4A AS Z=19 More informationQuantity required : 1 |
||||||
|
23 |
GU23215270 - ENGRENAGE 5A AS Z=18 More informationQuantity required : 1 |
||||||
|
23 |
GU32215210 - ENGRENAGE 5A AS Z=22 More informationQuantity required : 1 |
||||||
|
24 |
GU32214010 - ENGRENAGE 1A AS Z=26 More informationQuantity required : 1 |
||||||
|
25 |
GU39238100 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/1/9/img/132419.jpg)
26 |
GEARBOX BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, V7, NEVADA -GU92234716 More informationQuantity required : 1 |
||||||
|
27 |
GU10214300 - CALE 1,5 MM More informationQuantity required : 1 |
||||||
|
27 |
GU10214301 - CALE 1,7 MM More informationQuantity required : 1 |
||||||
|
27 |
GU10214302 - CALE 1,8 MM More informationQuantity required : 1 |
||||||
|
27 |
GU10214303 - CALE 1,9 MM More informationQuantity required : 1 |
||||||
|
27 |
GU10214304 - RONDELLE 2 MM More informationQuantity required : 1 |
||||||
|
27 |
GU10214305 - CALE 2,1 MM More informationQuantity required : 1 |
||||||
|
28 |
GU32202010 - EGOUTTOIR More informationQuantity required : 1 |
||||||
|
29 |
GU90271117 - BAGUE SEEGER More informationQuantity required : 1 |
