Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic IE 750 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

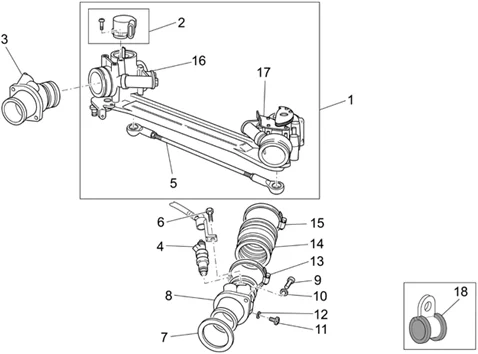

Moteur : 34.08 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/502/Nevada_Classic_IE_750_2004-2008_34.08.PNG)
1 |
GU32112510 - CORPE PAPILLON COMPL. More informationQuantity required : 1 |
||||||
|
2 |
GU05112830 - POTENTIOMETRE More informationQuantity required : 1 |
||||||
|
3 |
GU32115010 - PIPE D. More informationQuantity required : 1 |
||||||
|
4 |
GU32115710 - KIT INJECTEUR COMPLET More informationQuantity required : 2 |
||||||
|
5 |
GU32530509 - TIGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
6 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
||||||
|
7 |
GU32115510 - JOINT More informationQuantity required : 1 |
||||||
|
8 |
GU32115011 - PIPE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/2/img/133182.jpg)
9 |
GU98682322 - VIS M6X22 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
10 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 4 |
||||||
|
11 |
GU98310609 - VIS M6X10 More informationQuantity required : 2 |
||||||
|
12 |
GU95100116 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/2/img/132612.jpg)
13 |
GU93305057 - COLLIER 59,5/55 More informationQuantity required : 2 |
||||||
|
14 |
GU32114310 - MANCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/5/img/132615.jpg)
15 |
GU93305061 - COLLIER 61/65,5 More informationQuantity required : 2 |
||||||
|
16 |
GU32112610 - CORPS A PAPILLON D. More informationQuantity required : 1 |
||||||
|
17 |
GU32112611 - CORPS A PAPILLON G. More informationQuantity required : 1 |
||||||
|
18 |
GU32718010 - COLLIER More informationQuantity required : 2 |
