Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic IE 750 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

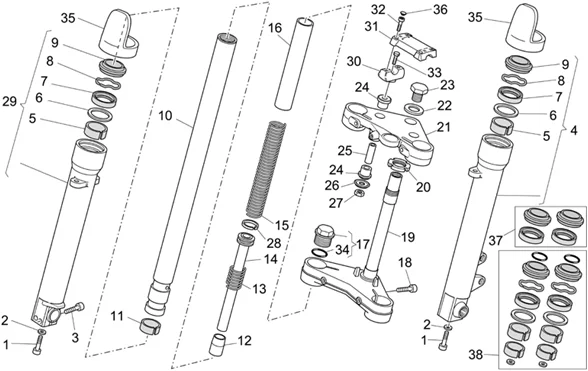

Chassis : 33.32 FOURCHE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/502/Nevada_Classic_IE_750_2004-2008_33.32.PNG)
1 |
AP8203200 - VIS More informationQuantity required : 2 |
||||||
|
2 |
SEAL WASHER ON FORK DRAIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8123206- More informationQuantity required : 2 |
||||||
|
3 |
GU98680330 - VIS TCEI M6X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
3 |
GU98620335 - VIS M6X35 More informationQuantity required : 2 |
||||||
|
4 |
GU31490783 - FOURREAU G More informationQuantity required : 1 |
||||||
|
4 |
GU32522610 - FOURREAU G More informationQuantity required : 1 |
||||||
|
5 |
599505 - MOYEU More informationQuantity required : 2 |
||||||
|
6 |
599504 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/5/img/67385.jpg)
7 |
FORK OIL SEAL GASKET- MARZOCCHI (D40) "PIAGGIO GENUINE PART" 500 X9/APRILIA 50-125-250 RS, 500 ATLANTIC, 650 PEGASO/GILERA 500 NEXUS/MOTO-GUZZI 750 BREVA, NEVADA, V7 -599501- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/7/img/67387.jpg)
8 |
599503 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/6/img/67386.jpg)
9 |
FORK DUST COVER - "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS/MOTO-GUZZI V7, BREVA NEVADA -599502- More informationQuantity required : 2 |
||||||
|
10 |
GU32525410 - TIGE More informationQuantity required : 2 |
||||||
|
10 |
GU31525483 - TIGE More informationQuantity required : 2 |
||||||
|
11 |
599629 - MOYEU More informationQuantity required : 2 |
||||||
|
12 |
AP8123655 - TAMPON DE FOND; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/2/img/72022.jpg)
13 |
FORK RETURN SPRING "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1200 BREVA, 750 NEVADA, 850-1200 NORGE/APRILIA 650 PEGASO, 1000 CAPONORD, 500 ATLANTIC -AP8163076- More informationQuantity required : 2 |
||||||
|
13 |
GU32530502 - CONTRE-RESSORT More informationQuantity required : 2 |
||||||
|
14 |
GU32530503 - TIGE More informationQuantity required : 2 |
||||||
|
14 |
GU31530583 - TIGE More informationQuantity required : 2 |
||||||
|
15 |
GU32526610 - RESSORT More informationQuantity required : 2 |
||||||
|
16 |
GU31530584 - TUYAU PRECHARGE More informationQuantity required : 2 |
||||||
|
16 |
GU32526310 - TUYAU More informationQuantity required : 2 |
||||||
|
17 |
AP8123631 - BOUCHON D.40 More informationQuantity required : 2 |
||||||
|
18 |
GU98620540 - VIS M10X40 More informationQuantity required : 2 |
||||||
|
19 |
GU32494110 - BASE AVEC TUBE More informationQuantity required : 1 |
||||||
|
19 |
GU32494060 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/8/2/img/72082.jpg)
20 |
NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 V7, BREVA, NEVADA -AP8163500- More informationQuantity required : 1 |
||||||
|
21 |
GU32493110 - PLAQUE SUP.FOURCHE More informationQuantity required : 1 |
||||||
|
21 |
GU32493160 - VIS More informationQuantity required : 1 |
||||||
|
22 |
AP8123843 - RONDELLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/9/img/72159.jpg)
23 |
AP8203251 - BOUCHON TUBE More informationQuantity required : 1 |
||||||
|
24 |
GU32530506 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
24 |
AP8103504 - SILENTBLOC More informationQuantity required : 4 |
||||||
|
25 |
GU91181039 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.JPG)
26 |
AP8123721 - RONDELLE More informationQuantity required : 2 |
||||||
|
27 |
AP8123512 - ECROU More informationQuantity required : 2 |
||||||
|
28 |
GU32530504 - SEGMENT More informationQuantity required : 2 |
||||||
|
29 |
GU32522510 - FOURREAU D More informationQuantity required : 1 |
||||||
|
29 |
GU31490683 - FOURREAU D More informationQuantity required : 1 |
||||||
|
30 |
GU03530547 - CAVALIER INF. More informationQuantity required : 2 |
||||||
|
30 |
GU31501283 - CAVALIER INF. More informationQuantity required : 2 |
||||||
|
31 |
GU31500483 - CAVALIER More informationQuantity required : 1 |
||||||
|
31 |
GU32500410 - CAVALIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
32 |
600123 - BOULON M8X30 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/8/0/img/132880.jpg)
33 |
GU98052560 - VIS M10X60 More informationQuantity required : 2 |
||||||
|
34 |
GU32530505 - VIS More informationQuantity required : 2 |
||||||
|
35 |
GU32504210 - PROT.TIGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
36 |
STEERING COLUMN CAP "PIAGGIO GENUINE PART" MOTO GUZZI BELLAGIO 940 2007>2013, BREVA 750 2003>2009, CALIFORNIA 1994>2012, NEVADA 1992>2013 -GU23943410- More informationQuantity required : 4 |
||||||
|
37 |
GU32530610 - JEU DE JOINTS More informationQuantity required : 1 |
||||||
|
38 |
GU32530611 - KIT MOTEUR SPI More informationQuantity required : 1 |
