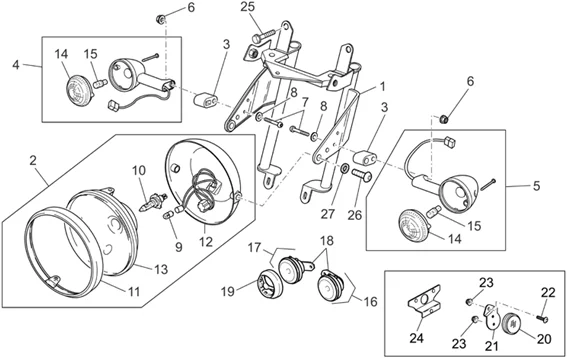

Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic IE 750 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)
Chassis : 33.41 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/502/Nevada_Classic_IE_750_2004-2008_33.41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/6/0/0/img/131600.jpg)
1 |
HEADLIGHT SUPPORT CLAMP "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, V7 -GU32506360- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/6/img/67886.jpg)
2 |
HEADLAMP "PIAGGIO GENUINE PART" 250-500 BEVERLY/MOTO-GUZZI 750 BREVA, NEVADA, 1100 V11 -640541- More informationQuantity required : 1 |
||||||
2 |
GU32740511 - PROJECTEUR AV.COMPLET GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
GU32753410 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/4/7/img/131747.jpg)
4 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 940 BELLAGIO 2007>2013, 750 NEVADA 2009>, V-7 2008> -GU32750660- More informationQuantity required : 1 |
||||||
|
4 |
GU32750661 - CLIGNOT.AV.DR./ARR.GA. More informationQuantity required : 1 |
||||||
|
5 |
GU32751661 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/5/0/img/131750.jpg)
5 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 940 BELLAGIO 2007>2013, 750 NEVADA 2009>, V-7 2008> -GU32751660- More informationQuantity required : 1 |
||||||
|
6 |
GU92787006 - ECROU More informationQuantity required : 2 |
||||||
|
7 |
GU98370655 - VIS M6X55 More informationQuantity required : 2 |
||||||
|
8 |
GU95021206 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
9 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
10 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/9/img/67889.jpg)
11 |
CHROMED HEADLAMP SHROUD "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, 1100 GRISO, V11, 940 BELLAGIO/PIAGGIO 250-500 BEVERLY CRUISER 2007>2012 -640598 - More informationQuantity required : 1 |
||||||
|
13 |
HEADLAMP "PIAGGIO GENUINE PART" 250-500 BEVERLY/MOTO-GUZZI 750 BREVA, NEVADA, 1100 V11 -640541- More informationQuantity required : 1 |
||||||
|
13 |
GU32740411 - GROUPE OPTIQUE COMPLET GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/5/3/img/131753.jpg)
14 |
GU32753760 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/5/2/img/131752.jpg)
14 |
GU32753711 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
15 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 2 |
||||||
|
15 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
16 |
883462 - CLAXON TONO H More informationQuantity required : 1 |
||||||
|
17 |
883463 - CLAXON TONO L More informationQuantity required : 1 |
||||||
|
18 |
GU01744200 - STAFFA SUPP.CLAXON More informationQuantity required : 2 |
||||||
|
19 |
GU03744760 - MASQUE POUR KLAXON More informationQuantity required : 2 |
||||||
|
20 |
AP8224163 - CATADIOPTRE, AMBRE; More informationQuantity required : 2 |
||||||
|
21 |
AP8148587 - AR.SUPPORT CATADIOPTRE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/4/img/71924.JPG)
22 |
AP8152174 - VITE TBEI M 5 X 12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
23 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
|
24 |
GU32781810 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/3/8/img/133238.jpg)
25 |
GU98880540 - VIS M10X40 More informationQuantity required : 2 |
||||||
|
26 |
GU98370831 - VIS TBEI M8X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.JPG)
27 |
GU95005308 - RONDELLE More informationQuantity required : 2 |
