Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic IE 750 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

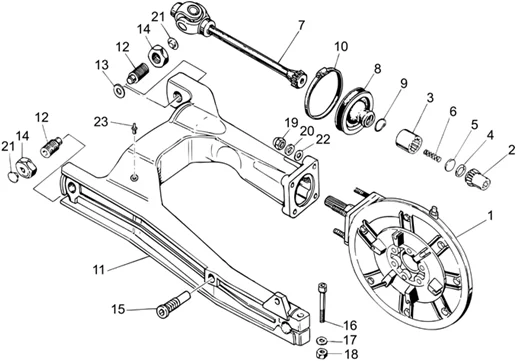

Chassis : 33.18 TRANSMISSION CPL. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/502/Nevada_Classic_IE_750_2004-2008_33.18.PNG)
1 |
GU32350260 - CARTER DE TRANSM.COMPL.GRIS More informationQuantity required : 1 |
||||||
|
2 |
GU31327783 - MANCHON More informationQuantity required : 1 |
||||||
|
3 |
GU19328801 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/3/5/img/132135.jpg)
4 |
GU90272023 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/8/1/img/129581.jpg)
5 |
GU19327601 - DISQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/3/img/132643.jpg)
6 |
GU94321099 - RESSORT More informationQuantity required : 1 |
||||||
|
7 |
GU23328081 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/8/9/8/img/129898.JPG)
8 |
PROTECTION COLLAR FOR CARDAN SHAFT "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, BREVA, NEVADA, V35, V50, V65 -GU23548080- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/8/9/9/img/129899.JPG)
9 |
GU23548180 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/9/img/71389.jpg)
10 |
AP8120246 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
GU32540260 - FOURCHE AR.GRIS More informationQuantity required : 1 |
||||||
|
12 |
GU19547000 - PIVOT More informationQuantity required : 2 |
||||||
|
13 |
GU35214300 - CALE More informationQuantity required : 1 |
||||||
|
14 |
GU31547882 - ECROU More informationQuantity required : 2 |
||||||
|
15 |
GU31544181 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/7/img/133167.jpg)
16 |
GU98680545 - VIS M10X45 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
17 |
GU95008210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/8/6/img/132486.jpg)
18 |
GU92606210 - ECROU M10X1,5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/0/6/img/69806.jpg)
19 |
860651 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
20 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/1/img/132571.jpg)
21 |
GU93180105 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.JPG)
22 |
GU95005308 - RONDELLE More informationQuantity required : 4 |
||||||
|
23 |
GU03922280 - BOUCHON 5X9 More informationQuantity required : 1 |
