Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic IE 750 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

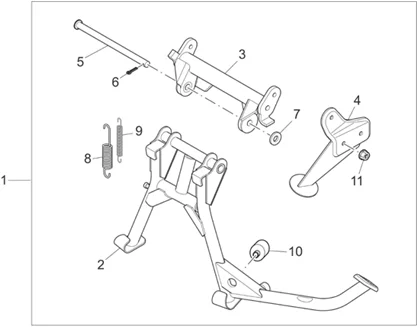

Accessoires : 35.51 BÉQUILLE CENTRALE TOURING
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/502/Nevada_Classic_IE_750_2004-2008_35.51.PNG)
1 |
CENTER STAND "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA 2004>2008 (KIT) -GU973217200006- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/5/0/8/img/131508.jpg)
2 |
CENTER STAND "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA -GU32430360- More informationQuantity required : 1 |
||||||
|
3 |
GU32431311 - TRAVERSE SUPERIEURE More informationQuantity required : 1 |
||||||
|
4 |
GU32129060 - PLAQUE G. More informationQuantity required : 1 |
||||||
|
5 |
GU32433111 - VIS More informationQuantity required : 1 |
||||||
|
6 |
GU95500228 - GOUPILLE More informationQuantity required : 1 |
||||||
|
7 |
GU95008213 - RONDELLE 12,2X20X2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/6/img/72316.jpg)
8 |
AP8221317 - RESSORT RAPPEL BEQ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/7/img/72317.jpg)
9 |
AP8221318 - RESS.RETOUR BEQ.INT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/9/img/71739.JPG)
10 |
AP8144030 - TAMPON FIN DE COURSE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/3/img/132533.jpg)
11 |
GU92650138 - ECROU M8X1,25 More informationQuantity required : 2 |
