Vehicle Exploded View - APRILIA LEONARDO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

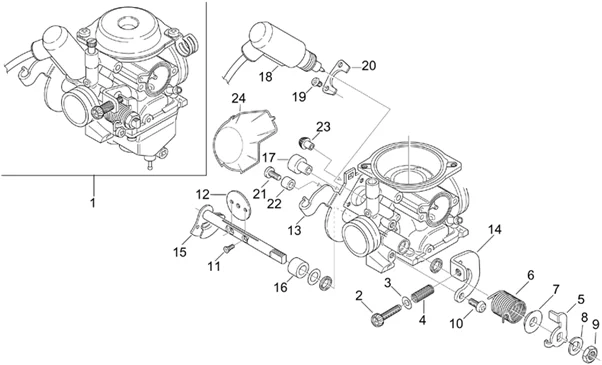

Moteur : 29.29 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_29.29.PNG)
1 |
AP8106912 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
1 |
AP8106913 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
2 |
AP8106487 - VIS DE RALENTI MINI; More informationQuantity required : 1 |
||||||
|
4 |
AP8106489 - RESSORT; More informationQuantity required : 1 |
||||||
|
5 |
AP8106490 - LEVIER GAZ; More informationQuantity required : 1 |
||||||
|
6 |
AP8106491 - RESSORT; More informationQuantity required : 1 |
||||||
|
7 |
AP8106492 - BAGUE; More informationQuantity required : 1 |
||||||
|
8 |
AP8122861 - RONDELLE More informationQuantity required : 1 |
||||||
|
9 |
AP8122816 - ECROU; More informationQuantity required : 1 |
||||||
|
11 |
AP8106506 - VIS; More informationQuantity required : 2 |
||||||
|
12 |
AP8106507 - SOUPAPE PAPILLON; More informationQuantity required : 1 |
||||||
|
13 |
AP8106924 - SUPPORT More informationQuantity required : 1 |
||||||
|
14 |
AP8106516 - SUPPORT; More informationQuantity required : 1 |
||||||
|
15 |
AP8106530 - ARBRE SOUPAPE PAPILLON More informationQuantity required : 1 |
||||||
|
16 |
AP8106509 - BAGUE; More informationQuantity required : 1 |
||||||
|
17 |
AP8106483 - FILTRE More informationQuantity required : 1 |
||||||
|
18 |
AP8106527 - SOUPAPE DEMARREUR More informationQuantity required : 1 |
||||||
|
18 |
AP8106923 - SOUPAPE DEMARREUR More informationQuantity required : 1 |
||||||
|
19 |
AP8106485 - VIS; More informationQuantity required : 3 |
||||||
|
20 |
AP8106486 - PLAQUE; More informationQuantity required : 1 |
||||||
|
22 |
AP8106529 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
23 |
AP8106926 - FILTRE More informationQuantity required : 1 |
