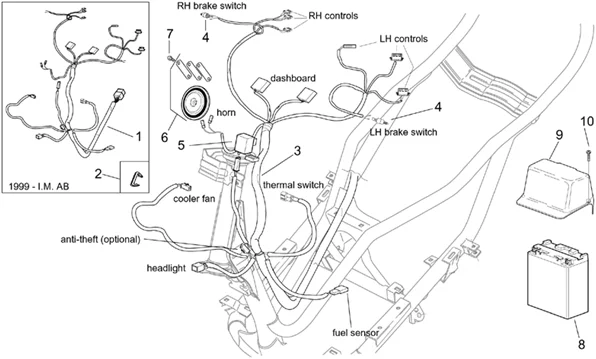

Chassis : 28.36 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_28.36.PNG)
2 |
AP8121309 - RESSORT CONNECTEURS; More informationQuantity required : 1 |
||||||
|
3 |
AP8124632 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
4 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
5 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235- More informationQuantity required : 1 |
||||||
|
6 |
AP8124598 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
7 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
8 |
AP8112920 - BATTERIE YUASA 12V-12 AH YB12 AL-A2 More informationQuantity required : 1 |
||||||
|
9 |
AP8138175 - COUVERCLE BATTERIE, NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
10 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 3 |
